Product Model

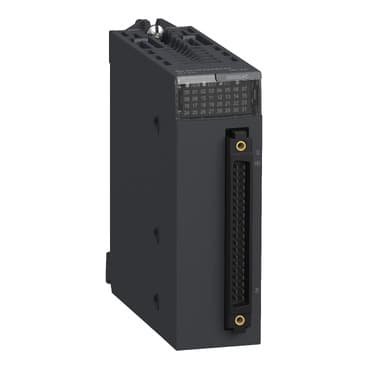

BMXDDO3202KC
Selling Points
- 1High-Density Design: Compact and modular design for efficient use in rack systems.
- 2Robust Protection: Equipped with reverse polarity protection, short-circuit protection, overload protection, and overvoltage protection.
- 3Severe Environment Compliance: Meets IEC/EN61131-2 standards for severe environments with conformal coating.
- 4Wide Operating Range: Operates in temperatures from -40°C to 60°C and humidity levels of 5-95%.
- 5LED Status Indicators: Includes status LEDs for module operating, channel diagnostic, and error indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
Product Specific Application | For severe environments | Discrete output number | 32 EN/IEC 61131-2 |
Discrete output type | Solid state | Discrete output logic | Positive |
Discrete output voltage | 24 V 19...30 V DC | Discrete output current | 0.1 A |
Current per channel | 0.125 A | Maximum current per module | 3.2 A |
Maximum leakage current | 0.1 mA at state 0 | Maximum voltage drop | <1.5 V at state 1 |
Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 3.6 W |
Response time on output | 1.2 ms | Paralleling of outputs | Yes : 3 maximum |
Typical current consumption | 125 mA 3.3 V DC | MTBF reliability | 290000 H |
Protection type | reverse polarity protection<br />External short-circuit protection<br /> overload protection<br /> overvoltage protection | Output overload protection | With current limiter<br />With electronic circuit breaker 0.125 A < Id < 0.185 A |
Output overvoltage protection | With transil diode | Output short-circuit protection | With 2 A external fuse |
Reverse polarity protection | Reverse mounted diode | Voltage detection threshold | < 14 V DC preactuator fault<br />> 18 V DC preactuator at state 0 |
Maximum tungsten load | 1.2 W | Switching frequency | 0.5/LI² Hz |
Maximum overload time | 15 ms | Load impedance ohmic | >= 220 Ohm |
Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.24 lb(US) (0.11 kg) |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground<br />1500 V AC 50/60 Hz 1 minute, output/internal logic<br />500 V DC 1 minute, between group of channels |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative humidity | 5…95 % 32…140 °F (0…60 °C) without condensation | Protective treatment | Conformal coating |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
