Product Model

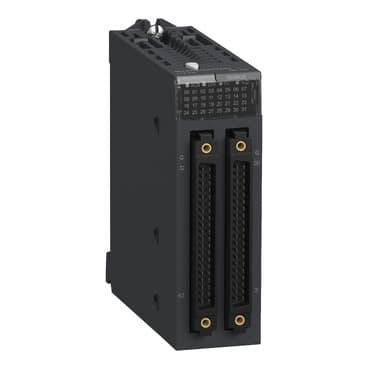

BMXDDO6402K
Selling Points
- 1Supports 64 solid-state outputs with 0.1 A current per channel.
- 2Delivers fast response times of 1.2 ms for precise signal control.
- 3Built with IP20 protection, ensuring resistance to dust and safe operation in controlled environments.
- 4Features an MTBF reliability rating of 150,000 hours and overload protection for up to 15 ms.
- 5Fully compatible with Modicon X80 controllers, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
Discrete output number | 64 EN/IEC 61131-2 | Discrete output type | Solid state |
Discrete output logic | Positive | Discrete output voltage | 24 V 19...30 V DC |
Discrete output current | 0.1 A | Current per channel | 0.125 A |
Maximum current per module | 6.4 A | Insulation resistance | > 10 MOhm 500 V DC |
Power dissipation in W | 6.85 W | Response time on output | 1.2 ms |
Paralleling of outputs | Yes : 3 maximum | Typical current consumption | 160 mA 3.3 V DC |
MTBF reliability | 150000 H | Protection type | External fuse reverse polarity protection<br /> short-circuit protection<br /> overload protection<br /> overvoltage protection |
Output overload protection | With current limiter<br />With electronic circuit breaker 0.125 A < Id < 0.185 A | Output overvoltage protection | With transil diode |
Output short-circuit protection | With 2 A external fuse | Reverse polarity protection | Reverse mounted diode |
Voltage detection threshold | < 14 V DC preactuator fault<br />> 18 V DC preactuator at state 0 | Maximum tungsten load | 1.2 W |
Switching frequency | 0.5/LI² Hz | Maximum overload time | 15 ms |
Load impedance ohmic | >= 220 Ohm | Status LED | 1 LED (Green) +32 channels indicator<br />1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
Net Weight | 0.33 lb(US) (0.15 kg) | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground<br />1500 V AC 50/60 Hz 1 minute, output/internal logic<br />500 V DC 1 minute, between group of channels |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
