Product Model

BMXDRC0805H

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29580

In Stock
Last updated: 2025/4/18
View Specifications

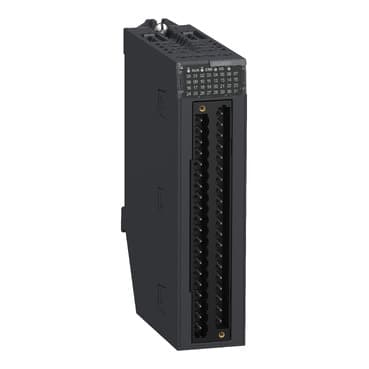

schneider BMXDRC0805H

Selling Points

  • 18 EN/IEC 61131-2 compliant relay outputs for precise control in industrial applications.
  • 2Adaptable voltage range from 24 to 240V AC and 12 to 24V DC for diverse industrial requirements.
  • 3High electrical durability withstanding AC-15 and DC-13 cycles, ensuring reliable performance.
  • 4Efficient operation with a power dissipation of 2.7 W and insulation resistance exceeding 10 MOhm at 500 V DC.
  • 5Comprehensive diagnostics via LED indicators for clear visual indication of module status and channel diagnostics.
Product Details
BMXDRC0805H
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Relay discrete output module
Product Specific Application
For severe environments
Discrete output number
8 EN/IEC 61131-2
Discrete output logic
Positive or negative
Discrete output voltage
5...125 V 5...150 V DC<br />24...240 V 19...264 V AC
Electrical connection
40 ways terminal block
Network Frequency
50/60 Hz
Network frequency limits
47…63 Hz
Sensor power supply
5...150 V<br />19...264 V
[Ith] conventional free air thermal current
4 A 104 °F (40 °C)<br />3 A 122 °F (50 °C)<br />2 A 140 °F (60 °C)<br />1.2 A 158 °F (70 °C)
Insulation resistance
> 10 MOhm 500 V DC
Power dissipation in W
3.6 W
Response time on output
<= 10 ms activation<br /><= 13 ms deactivation
Typical current consumption
40 mA 3.3 V DC<br />101 mA 24 V DC
MTBF reliability
2650000 H
Protection type
External short-circuit protection<br />External overload protection<br />External overvoltage protection, inductive AC<br />External overvoltage protection, inductive DC
Output overload protection
Use 1 fast blow fuse per channel or group of channel
Output overvoltage protection
Use discharge diode on each output DC<br />Use RC circuit on each output AC<br />Use ZNO surge limiter on each output AC
Output short-circuit protection
Use 1 fast blow fuse per channel or group of channel
Minimum switching current
10 mA 5 V DC
Electrical durability
AC-12 200000 cycles 48 VA 24 V -13…140 °F (-25…60 °C)<br />AC-12 200000 cycles 28.8 VA 24 V 140…158 °F (60…70 °C)<br />AC-12 300000 cycles 48 VA 48 V -13…140 °F (-25…60 °C)<br />AC-12 300000 cycles 28.8 VA 48 V 140…158 °F (60…70 °C)<br />AC-12 150000 cycles 96 VA 48 V -13…140 °F (-25…60 °C)<br />AC-12 150000 cycles 57.6 VA 48 V 140…158 °F (60…70 °C)<br />AC-12 300000 cycles 110 VA 100...120 V -13…140 °F (-25…60 °C)<br />AC-12 300000 cycles 66 VA 100...120 V 140…158 °F (60…70 °C)<br />AC-12 150000 cycles 220 VA 100...120 V -13…140 °F (-25…60 °C)<br />AC-12 150000 cycles 132 VA 100...120 V 140…158 °F (60…70 °C)<br />AC-12 300000 cycles 220 VA 200...250 V -13…140 °F (-25…60 °C)<br />AC-12 300000 cycles 132 VA 200...250 V 140…158 °F (60…70 °C)<br />AC-12 150000 cycles 500 VA 200...250 V -13…140 °F (-25…60 °C)<br />AC-12 150000 cycles 300 VA 200...250 V 140…158 °F (60…70 °C)<br />AC-15 700000 cycles 10 VA 24 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 700000 cycles 6 VA 24 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 500000 cycles 24 VA 24 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 500000 cycles 14.4 VA 24 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 200000 cycles 48 VA 24 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 200000 cycles 28.8 VA 24 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 700000 cycles 10 VA 48 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 700000 cycles 6 VA 48 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 500000 cycles 24 VA 48 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 500000 cycles 14.4 VA 48 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 300000 cycles 48 VA 48 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 300000 cycles 28.8 VA 48 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 100000 cycles 96 VA 48 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 100000 cycles 57.6 VA 48 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 1000000 cycles 10 VA 100...120 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 1000000 cycles 6 VA 100...120 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 300000 cycles 50 VA 100...120 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 300000 cycles 30 VA 100...120 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 200000 cycles 110 VA 100...120 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 200000 cycles 66 VA 100...120 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 70000 cycles 220 VA 100...120 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 70000 cycles 132 VA 100...120 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 1000000 cycles 10 VA 200...250 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 1000000 cycles 6 VA 200...250 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 500000 cycles 50 VA 200...250 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 500000 cycles 30 VA 200...250 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 200000 cycles 110 VA 200...250 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 200000 cycles 66 VA 200...250 V 140…158 °F (60…70 °C) 0.4)<br />AC-15 150000 cycles 220 VA 200...250 V -13…140 °F (-25…60 °C) 0.4)<br />AC-15 150000 cycles 132 VA 200...250 V 140…158 °F (60…70 °C) 0.4)<br />DC-12 200000 cycles 24 W 24 V -13…140 °F (-25…60 °C)<br />DC-12 200000 cycles 14.4 W 24 V 140…158 °F (60…70 °C)<br />DC-12 150000 cycles 48 W 24 V -13…140 °F (-25…60 °C)<br />DC-12 150000 cycles 28.8 W 24 V 140…158 °F (60…70 °C)<br />DC-12 150000 cycles 40 W 48...60 V -13…140 °F (-25…60 °C)<br />DC-12 150000 cycles 24 W 48...60 V 140…158 °F (60…70 °C)<br />DC-12 100000 cycles 45 W 100...125 V -13…140 °F (-25…60 °C)<br />DC-12 60000 cycles 45 W 100...125 V 140…158 °F (60…70 °C)<br />DC-13 100000 cycles 10 W 24 V -13…140 °F (-25…60 °C)<br />DC-13 100000 cycles 6 W 24 V 140…158 °F (60…70 °C)<br />DC-13 60000 cycles 24 W 24 V -13…140 °F (-25…60 °C)<br />DC-13 60000 cycles 14.4 W 24 V 140…158 °F (60…70 °C)<br />DC-13 40000 cycles 48 W 24 V -13…140 °F (-25…60 °C)<br />DC-13 40000 cycles 28.8 W 24 V 140…158 °F (60…70 °C)<br />DC-13 40000 cycles 40 W 48...60 V -13…140 °F (-25…60 °C)<br />DC-13 40000 cycles 24 W 48...60 V 140…158 °F (60…70 °C)<br />DC-13 100000 cycles 15 W 100...125 V -13…140 °F (-25…60 °C)<br />DC-13 40000 cycles 15 W 100...125 V 140…158 °F (60…70 °C)
Status LED
1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O
Net Weight
0.417 lb(US) (0.189 kg)
IP Degree of Protection
IP20
Environmental characteristic
Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2
Dielectric strength
1780 V AC 50/60 Hz 1 min
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Relative humidity
0…95 % -13…158 °F (-25…70 °C) without condensation
Protective treatment
Conformal coating
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor

Specifications may be subject to change without notice
