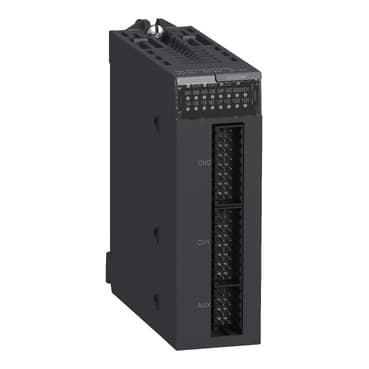

schneider BMXEHC0200H

Selling Points

  • 1Supports up to 60,000 Hz counting frequency.
  • 2Built for severe environments with an operating temperature range of -25°C to 70°C.
  • 3Compatible with 19.2-30 V 2-wire/3-wire proximity sensors and incremental encoders.
  • 4Features 2 outputs with a maximum output current of 0.5 A per output.
  • 5Equipped with real-time diagnostic features for seamless troubleshooting and maintenance.
Product Details
BMXEHC0200H
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M340 automation platform
Product or Component Type
Counter module
Product Specific Application
For severe environments
Number of Channels
2
Maximum counting frequency
60000 Hz
Number of inputs
6
Input compatibility
19.2…30 V 2-wire/3-wire proximity sensor<br /> incremental encoder with push-pull outputs, 10...30 V totem pole
Input voltage
24 V DC type 3
Number of outputs
2
Output voltage
24 V DC
Counter functions
Ratio count<br />Frequency meter<br />Down counting<br />32-bit counter counting<br />Loop (modulo) counting<br />Measure time periods<br />Count events<br />Width modulation
Cycle time
1 ms
Isolation voltage
1500 V 60 s
input type
3 auxiliary input<br />3 high speed
Input voltage limits
19.2...30 V at 60 °C<br />26.4 V at 70 °C
Input current
2 mA at 11 V
Voltage state 1 guaranteed
11...30 V
Current state 1 guaranteed
>= 6 mA
Voltage state 0 guaranteed
< 5 V
Current state 0 guaranteed
<= 1.5 mA
Discrete output logic
Positive or negative configurable
Maximum output current
2 A per module<br />0.5 A per output
Output voltage limits
19.2...30 V
Maximum load current
1 A per module<br />0.5 A per output
Maximum leakage current
0.1 mA at state 0
Maximum voltage drop
<3 V at state 1
Output overload protection
Integrated
Output short-circuit protection
1.5 A integrated
Overlap time
0.2 ms
Electrical connection
1 connector 10 pins for wiring auxiliary input and sensor power supply<br />1 connector 16 pins for wiring the sensors of counter 0<br />1 connector 16 pins for wiring the sensors of counter 1
Current consumption
200 mA 3.3 V DC bus<br />40 mA 24 V DC rack<br />80 mA 24 V DC sensor
Module format
Standard
Net Weight
0.247 lb(US) (0.112 kg)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy
Standards
EN 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2
Protective treatment
Conformal coating

Specifications may be subject to change without notice
