Product Model

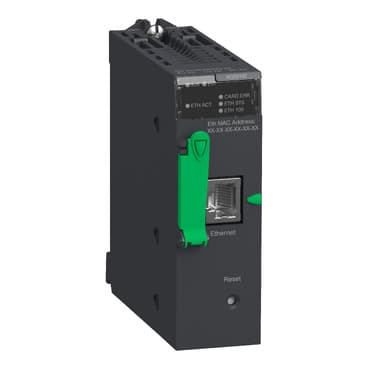

BMXNGD0100
Selling Points
- 1Robust Ethernet TCP/IP Network Module: Designed for global data service and Modbus TCP messaging.
- 2High-Quality Construction: Built with the latest innovative technology and robust materials.
- 3Compact Design: Occupies one slot on the rack, making it easy to integrate into existing systems.
- 4Advanced Security Features: Includes security measures for reliable data transmission.
- 5Compliance with International Standards: Meets UL 508, EN 61131-2, EN 61000-6-4, and EN 61010-2-201 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M580 | Product or Component Type | Ethernet TCP/IP network module |
Integrated connection type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair | Protective treatment | TC |
Communication service | Global Data<br />Modbus TCP messaging<br />Security | Port Ethernet | 10BASE-T/100BASE-TX |
Memory description | Supplied Flash memory card (BMXRWSC016M) | Supply | Internal power supply via rack |
marking | CE | Local signalling | for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for status of Ethernet network (ETH STS) 1 LED (green)<br /> for data rate (ETH 100) 1 LED (red)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red) |
Control Type | RESET push-button cold restart | Current consumption | 90 mA 24 V DC |
Module format | Standard | Net Weight | 0.4 lb(US) (0.2 kg) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative Humidity | 10…95 % without condensation |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
