schneiderPLC/PAC and Controllers
Product Model

BMXNOC0401

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29643

In Stock
Last updated: 2025/4/19
View Specifications

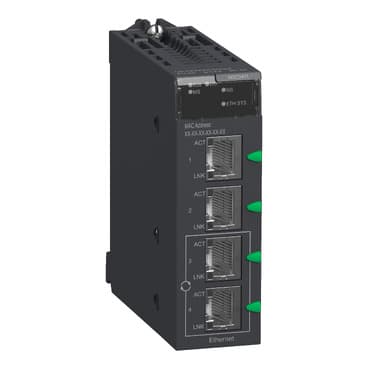

schneider BMXNOC0401

Selling Points

  • 1The BMXNOC0401 ensures seamless data transfer with its 10/100 Mbps communication rate.
  • 2Built to withstand harsh environments, it operates between 0°C to 60°C.
  • 3With a current consumption of 555 mA at 3.3 V DC, it is energy-efficient.
  • 4Equipped with multiple LEDs for real-time status monitoring (RUN, ERR, ETH STS, MS, NS).
  • 5Compatible with Modicon M340 automation platforms and supports various industrial protocols like Modbus TCP and Ethernet/IP.
Product Details
BMXNOC0401
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M340 automation platform
Product or Component Type
Ethernet TCP/IP network module
Concept
Transparent Ready
Integrated connection type
Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30
Protective treatment
TC
Communication service
Bandwidth management<br />Data Editor (via PC terminal)<br />FDR server<br />Rack Viewer<br />SNMP network administrator<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />Embedded 4-port switch<br />RSTP support<br />Port mirroring
Port Ethernet
10BASE-T/100BASE-TX
Memory usage
Application saving<br />Activating the standard web server
Supply
Internal power supply via rack
marking
CE
Local signalling
for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for status of Ethernet network (ETH STS) 1 LED (amber)<br /> for MS (Module Status) 1 LED (green/red)<br /> for NS (Network Status) 1 LED (green/red)
Control Type
Processor or system fault (ERR)
Current consumption
555 mA 3.3 V DC
Module format
Standard
Net Weight
0.4 lb(US) (0.2 kg)
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative Humidity
10…95 % without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Environmental characteristic
Hazardous location class I division 2

Specifications may be subject to change without notice
