Product Model

BMXNOE0100

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29644

In Stock
Last updated: 2025/4/19
View Specifications

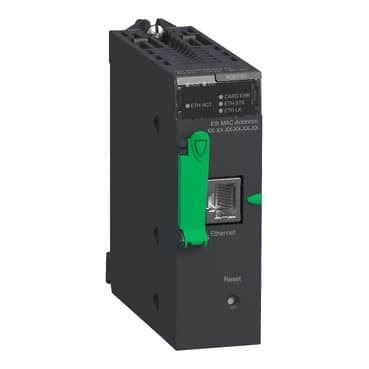

schneider BMXNOE0100

Selling Points

  • 1Facilitates seamless data exchange between networked devices in industrial automation systems.
  • 2Enhances system flexibility with application data storage and retrieval.
  • 3Ensures efficient and secure communication in industrial environments with a protective treatment of TC.
  • 4Equipped with one RJ45 port for 10/100 Mbit/s connectivity.
  • 5Meets CE marking standards and has an IP20 degree of protection for safe operation.
Product Details
BMXNOE0100
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M340 automation platform
Product or Component Type
Ethernet TCP/IP network module
Concept
Transparent Ready
Integrated connection type
Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30
Protective treatment
TC
Communication service
Bandwidth management<br />Data Editor (via PC terminal)<br />FDR server<br />Rack Viewer<br />SNMP network administrator<br />Global Data<br />I/O scanning<br />Modbus TCP messaging<br />Web server configurable
Port Ethernet
10BASE-T/100BASE-TX
Memory description
Supplied Flash memory card (BMXRWSC016M)
Memory usage
Application saving<br />Activating the standard web server
Supply
Internal power supply via rack
marking
CE
Local signalling
for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for status of Ethernet network (ETH STS) 1 LED (green)<br /> for data rate (ETH 100) 1 LED (red)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)
Control Type
RESET push-button cold restart
Current consumption
90 mA 24 V DC
Module format
Standard
Net Weight
0.4 lb(US) (0.2 kg)
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative Humidity
10…95 % without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility

Specifications may be subject to change without notice
