Product Model

BMXNOE0100H

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29645

In Stock
Last updated: 2025/4/19
View Specifications

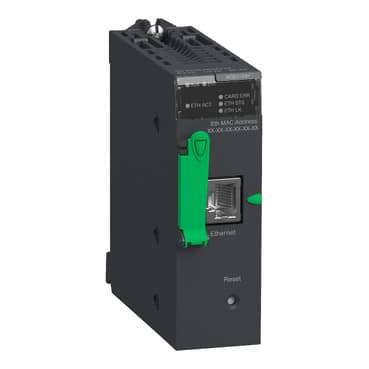

schneider BMXNOE0100H

Selling Points

  • 1Multi-tasking system for guaranteed reflex time
  • 2Programmed with Unity Pro software for ease of programming and commissioning
  • 3USB port for programming and HMI integration
  • 4Hot-swap I/O modules without stopping the process
  • 5Transparent ready class B30 server for seamless integration
Product Details
BMXNOE0100H
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M340 automation platform
Product or Component Type
Ethernet TCP/IP network module
Product Specific Application
For severe environments
Concept
Transparent Ready
Integrated connection type
Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30
Protective treatment
Conformal coating
Communication service
Bandwidth management<br />Data Editor (via PC terminal)<br />FDR server<br />Rack Viewer<br />SNMP network administrator<br />Global Data<br />I/O scanning<br />Modbus TCP messaging<br />Web server configurable
Port Ethernet
10BASE-T/100BASE-TX
Memory description
Supplied Flash memory card (BMXRWSC016M)
Memory usage
Application saving<br />Activating the standard web server
Supply
Internal power supply via rack
marking
CE
Local signalling
for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for status of Ethernet network (ETH STS) 1 LED (green)<br /> for data rate (ETH 100) 1 LED (red)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)
Control Type
RESET push-button cold restart
Current consumption
90 mA 24 V DC
Module format
Standard
Net Weight
0.4 lb(US) (0.2 kg)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />IEC 61000-6-5, interface type 1 and type 2<br />IEC 61850-3, location G<br />IEC 60079-0
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2

Specifications may be subject to change without notice
