schneiderPLC/PAC and Controllers
Product Model

BMXNOM0200

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29648

In Stock
Last updated: 2025/4/19
View Specifications

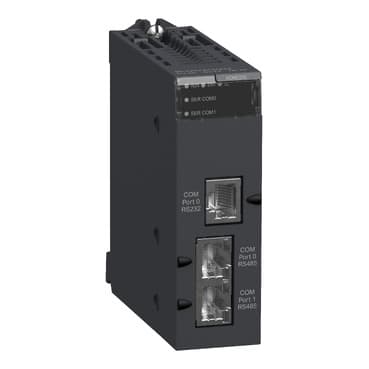

schneider BMXNOM0200

Selling Points

  • 1Dual RS-485/232 Ports: Supports both RS-485 and RS-232 protocols for versatile connectivity.
  • 2Modbus and Character Mode: Compatible with Modbus and character mode for seamless integration.
  • 3Internal Power Supply: Powered via rack, eliminating the need for external power sources.
  • 4LED Indicators: Includes 4 LEDs for module status (ERR, RUN, SER COM 0, SER COM 1).
  • 5IP20 Protection: Meets IP20 degree of protection standards for reliable operation in industrial environments.
Product Details
BMXNOM0200
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Serial links module
Concept
Serial link
Integrated connection type
RS232 RJ45 115.2 kbit/s 8 wires<br />RS485 RJ45 57.6 kbit/s 1 twisted pair
Protective treatment
TC
Supply
Internal power supply via rack
marking
CE
Local signalling
for module fault (ERR) 1 LED (red)<br /> for module running (RUN) 1 LED (green)<br /> for activity on the serial link (SER COM 0) 1 LED (green)<br /> for activity on the serial link (SER COM 1) 1 LED (green)
Current consumption
80 mA 24 V DC
Module format
Standard
Net Weight
0.51 lb(US) (0.23 kg)
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative Humidity
10…95 % without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility

Specifications may be subject to change without notice
