schneiderPLC/PAC and Controllers
Product Model

BMXNOR0200H

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29650

In Stock
Last updated: 2025/4/19
View Specifications

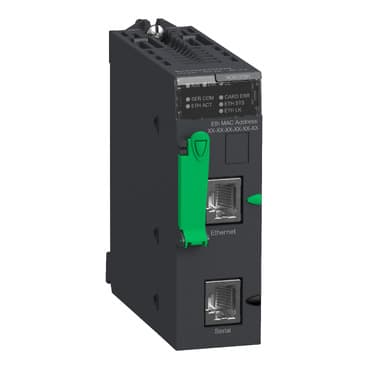

schneider BMXNOR0200H

Selling Points

  • 1Robust Communication Module: Supports 10/100 Mbps Ethernet and serial communication (RS232/485) for reliable data transfer.
  • 2Severe Environment Capable: Operates in ambient air temperatures from -25 to 70°C, making it suitable for harsh industrial settings.
  • 3High-Quality Design: Conformal coating for protection and LED indicators for real-time status monitoring.
  • 4Multi-Protocol Support: Compatible with IEC 60870-5-101/104, DNP3, and Modbus TCP for seamless integration.
  • 5Compact and Efficient: Consumes only 95 mA at 24 V DC, with a standard module format and net weight of 0.2 kg.
Product Details
BMXNOR0200H
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M340
Product or Component Type
Communication module
Integrated connection type
Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30<br />Serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30
Protective treatment
Conformal coating
Communication service
Bandwidth management<br />Modbus TCP messaging<br />DNP3/DNP3 IP protocol<br />IEC 60870-5 -101/-104 protocol<br />Time stamped events management<br />External modem management (serial, PSTN, GSM, GPRS/3G)<br />Data logging in CSV files<br />Email/SMS notifications<br />Web server, rack viewer, data editor<br />BootP, DHCP, FDR client<br />SMTP server, FTP client/server, NTP client, SNMP agent,<br />Automatic events backup on power loss<br />Multi-protocols support in a single module (master and slave)<br />Transparent events routing from remote slaves to SCADA
Port Ethernet
10BASE-T/100BASE-TX
Memory description
Supplied Flash SD memory card (BMXRWS128MWF) 128000 kB
Memory usage
Activating the standard web server<br />User web pages storage<br />Data logging CSV files storage
Supply
Internal power supply via rack
Local signalling
for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for status of Ethernet network (ETH STS) 1 LED (green)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for download in progress (DL) 1 LED (red)<br /> for serial communication (SER COM) 1 LED (yellow)<br /> for data rate (ETH LINK) 1 LED (green)
Current consumption
95 mA 24 V DC
Module format
Standard
Net Weight
0.4 lb(US) (0.2 kg)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />UKCA
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2

Specifications may be subject to change without notice
