schneiderPLC/PAC and Controllers
Product Model

BMXNRP0200

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29651

In Stock
Last updated: 2025/4/19
View Specifications

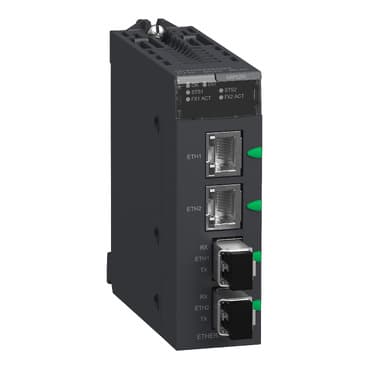

schneider BMXNRP0200

Selling Points

  • 1Reliable Networking Solution: The BMXNRP0200 ensures stable communication between nodes or segments of networks over fiber optic cables.
  • 2High-Speed Data Transfer: Supports up to 100Mb/s data transfer rate, making it suitable for high-demand industrial applications.
  • 3Easy Installation: Simple networking device with no network management functions, making it easy to integrate into existing systems.
  • 4Durable Design: Operates within a temperature range of 0 to 60°C, ensuring reliable performance in various environments.
  • 5CE and RoHS Compliant: Meets international safety and environmental standards, ensuring compliance with global regulations.
Product Details
BMXNRP0200
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Fibre optic repeater
Optic fiber type
Multi mode
Rated voltage
24 V
Current consumption
140 mA typical<br />200 mA maximum
Function Available
Hot swap
Number of port
2 RJ45 100BASE-TX IEEE 802.3u<br />2 fiber optic 100BASE-FX IEEE 802.3u
Local signalling
for power supply status 1 LED (green)<br /> for error condition (ERR) 1 LED (red)<br /> for link status 2 LEDs (green)<br /> for fiber port state and activity 2 LEDs (green)
Wavelength
0.000051575 in (1310 nm)
Operating Distance
0...2000 m
Attenuation
-23.5…-14 dB 50/125 µm)<br />-20…-14 dB 62.5/125 µm)
Rise/fall time
3 ns
Receiver Sensitivity
- 31...- 14 dBm
marking
CE
Width
1.3 in (32 mm)
Height
3.9 in (100 mm)
Depth
3.4 in (86 mm)
Net Weight
7.2 oz (203 g)
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Relative humidity
0…95 %
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Product certifications
CE<br />RCM<br />CSA<br />EAC<br />Merchant Navy<br />UL
Standards
EN/IEC 61010-2-201<br />EN/IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201
Dielectric strength
1400 V DC between field and bus<br />500 V DC between channels
IP Degree of Protection
IP20
Operating altitude
0...13123.36 ft (0...4000 m)

Specifications may be subject to change without notice
