schneiderPLC/PAC and Controllers
Product Model

BMXNRP0201C

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29654

In Stock
Last updated: 2025/4/19
View Specifications

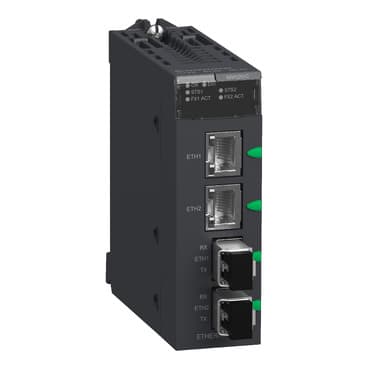

schneider BMXNRP0201C

Selling Points

  • 1Built to withstand harsh conditions, ensuring reliable operation in extreme temperatures and environments.
  • 2Supports 100Mb data transfer over single-mode fibers, enhancing network performance and reliability.
  • 3Allows for easy replacement without disrupting the system, ensuring minimal downtime.
  • 4Meets international standards including CE, UL, CSA, and ATEX directives for safety and compliance.
  • 5Aligns with Schneider Electric’s commitment to environmental sustainability and low-CO2 products.
Product Details
BMXNRP0201C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Fibre optic repeater
Optic fiber type
Single mode
Rated voltage
24 V
Current consumption
140 mA typical<br />200 mA maximum
Function Available
Hot swap
Number of port
2 RJ45 100BASE-TX IEEE 802.3u<br />2 fiber optic 100BASE-FX IEEE 802.3u
Local signalling
for power supply status 1 LED (green)<br /> for error condition (ERR) 1 LED (red)<br /> for link status 2 LEDs (green)<br /> for fiber port state and activity 2 LEDs (green)
Wavelength
0.000051575 in (1310 nm)
Operating Distance
0...15000 m
Attenuation
-15…-8 dB 9/125 µm)
Rise/fall time
2.5 ns
Receiver Sensitivity
- 31...- 8 dBm
marking
CE
Width
1.3 in (32 mm)
Height
3.9 in (100 mm)
Depth
3.4 in (86 mm)
Net Weight
7.2 oz (203 g)
Ambient Air Temperature for Operation
-13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative humidity
0…95 %
Protective treatment
Conformal coating
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2
Dielectric strength
1400 V DC between field and bus<br />500 V DC between channels
IP Degree of Protection
IP20
Operating altitude
0...13123.36 ft (0...4000 m)

Specifications may be subject to change without notice
