Product Model

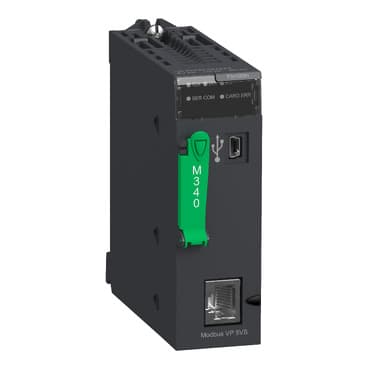

BMXP341000H
Selling Points
- 1High I/O Capacity: Supports up to 512 discrete and 128 analog I/O.
- 2Modbus Compatibility: Seamlessly integrates with Modbus protocols for efficient data exchange.
- 3Robust Communication: Features USB, RS232C, RS485, and RJ45 non-isolated serial links.
- 4Severe Environment Ready: Designed for operation in harsh conditions with an ambient temperature range of -25°C to 70°C.
- 5Rack Mounting: Easy installation on racks with specific mounting dimensions for optimal integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M340 automation platform | Product or Component Type | Processor module |
Product Specific Application | For severe environments | Number of racks | 2 |
Number of slots | 11 | Discrete I/O processor capacity | 512 I/O single-rack configuration |
Analogue I/O processor capacity | 66 I/O single-rack configuration<br />128 I/O multi-rack configuration | Number of application specific channel | 20 |
Monitoring | Diagnostic counters Modbus<br />Event counters Modbus | Control channels | Programmable loops |
Integrated connection type | Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex<br />Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex<br />Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex<br />Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex<br />USB port 12 Mbit/s | Communication module processor capacity | 2 Ethernet communication module<br />2 AS-Interface module |
Number of devices per segment | 0…32character mode)<br />0…32Modbus) | Number of devices | 2 point-to-point character mode<br />2 point-to-point Modbus |
Bus length | 0.0000000000…32.8 ft (0…10 m) serial link non isolated character mode segment<br />0.0000000000…32.8 ft (0…10 m) serial link non isolated Modbus segment<br />0.0000000000…3280.8 ft (0…1000 m) serial link isolated character mode segment<br />0.0000000000…3280.8 ft (0…1000 m) serial link isolated Modbus segment<br />0.0000000000…49.2 ft (0…15 m) character mode point-to-point<br />0.0000000000…49.2 ft (0…15 m) Modbus point-to-point | Maximum tap links length | <49.2 ft (15 m) serial link non isolated character mode segment<br /> <49.2 ft (15 m) serial link non isolated Modbus segment<br /> <131.2 ft (40 m) serial link isolated character mode segment<br /> <131.2 ft (40 m) serial link isolated Modbus segment |
Number of addresses | 0…248 character mode<br />0…248 Modbus | Requests | 1 K data bytes per request character mode<br />252 data bytes per RTU request Modbus<br />504 data bytes per ASCII request Modbus |
Control parameter | One CRC on each frame (RTU) Modbus<br />One LRC on each frame (ASCII) character mode<br />One LRC on each frame (ASCII) Modbus | Memory description | Internal RAM 2048 kB<br />Internal RAM 128 kB data<br />Internal RAM 1792 kB program constants and symbols<br />Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
Maximum size of object areas | 128 kB unlocated internal data<br />16250 %Mi located internal bits<br />32464 %MWi internal words located internal data<br />32760 %KWi constant words located internal data | Default size of object areas | 128 %KWi constant words located internal data<br />256 %Mi located internal bits<br />512 %MWi internal words located internal data |
Application structure | 32 event tasks<br />1 cyclic/periodic master task<br />1 periodic fast task<br />No auxiliary task | Execution time per instruction | 0.18 µs Boolean<br />0.26 µs double-length words<br />0.38 µs single-length words<br />1.74 µs floating points |
Number of instructions per ms | 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />5.4 Kinst/ms 100 % Boolean | System overhead | 0.2 ms fast task<br />1.05 ms master task |
Current consumption | 72 mA 24 V DC | Supply | Internal power supply via rack |
marking | CE | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Red) memory card fault (CARD ERR)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Yellow) activity on Modbus (SER COM) |
Net Weight | 0.4 lb(US) (0.2 kg) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation | IP Degree of Protection | IP20 |
Protective treatment | Conformal coating | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
