Product Model

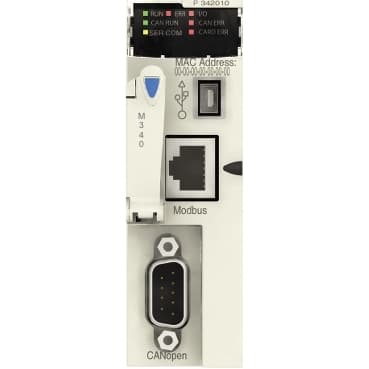

BMXP342010
Selling Points
- 1High-Performance Processing: The BMXP342010 processor module delivers fast execution times with Boolean instructions at 0.12 μs and single-length words at 0.25 μs.
- 2Robust I/O Capacity: Supports up to 1024 discrete I/O and 256 analog I/O, making it ideal for complex automation tasks.
- 3Modbus and CANopen Support: Compatible with Modbus and CANopen protocols for seamless integration into various automation systems.
- 4Compact Design: Available in a 4-rack configuration with 11 slots, providing a compact yet powerful solution for automation needs.
- 5Environmental Compliance: Meets IP20 and TC protective treatments, ensuring safe operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M340 automation platform | Product or Component Type | Processor module |
Concept | Modbus<br />CANopen | Number of racks | 4 |
Number of slots | 11 | Discrete I/O processor capacity | 1024 I/O multi-rack configuration<br />704 I/O single-rack configuration |
Analogue I/O processor capacity | 256 I/O multi-rack configuration<br />66 I/O single-rack configuration | Number of application specific channel | 36 |
Monitoring | Diagnostic counters Modbus<br />Event counters Modbus | Control channels | Programmable loops |
Motion control | Independent axis CANopen | Integrated connection type | Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex<br />Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex<br />Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex<br />Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex<br />USB port 12 Mbit/s<br />CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s |
Communication module processor capacity | 2 Ethernet communication module<br />4 AS-Interface module | embedded communication service | Network management (NMT) CANopen<br />Process Data Object (PDO) CANopen<br />Service Data Object (SDO) CANopen<br />Special functions (SYNC, EMCY, TIME) CANopen |
Transmission rate | 1 Mbit/s 0.0000000000…65.6 ft (0…20 m) 0.0000000000…2.0 ft (0…0.6 m)<br />125 kbit/s 0.0000000000…1640.4 ft (0…500 m) 0.0000000000…32.8 ft (0…10 m)<br />20 kbit/s 0.0000000000…8202.10 ft (0…2500 m) 0.0000000000…984.3 ft (0…300 m)<br />250 kbit/s 0.0000000000…820.2 ft (0…250 m) 0.0000000000…32.8 ft (0…10 m)<br />50 kbit/s 0.0000000000…3280.8 ft (0…1000 m) 0.0000000000…393.7 ft (0…120 m)<br />500 kbit/s 0.0000000000…328.08 ft (0…100 m) 0.0000000000…32.8 ft (0…10 m)<br />800 kbit/s 0.0000000000…131.2 ft (0…40 m) 0.0000000000…19.7 ft (0…6 m) | Bus type | CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA<br />CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA<br />CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
Number of server device(s) | 63 CANopen | Number of devices per segment | 0…32character mode)<br />0…32Modbus)<br />0…16 672.6 ft (205 m) CANopen)<br />0…32 607.0 ft (185 m) CANopen)<br />0…64 524.9 ft (160 m) CANopen) |
Number of devices | 2 point-to-point character mode<br />2 point-to-point Modbus | Bus length | 0.0000000000…32.8 ft (0…10 m) serial link non isolated character mode segment<br />0.0000000000…32.8 ft (0…10 m) serial link non isolated Modbus segment<br />0.0000000000…3280.8 ft (0…1000 m) serial link isolated character mode segment<br />0.0000000000…3280.8 ft (0…1000 m) serial link isolated Modbus segment<br />0.0000000000…49.2 ft (0…15 m) character mode point-to-point<br />0.0000000000…49.2 ft (0…15 m) Modbus point-to-point |
Maximum tap links length | <49.2 ft (15 m) serial link non isolated character mode segment<br /> <49.2 ft (15 m) serial link non isolated Modbus segment<br /> <131.2 ft (40 m) serial link isolated character mode segment<br /> <131.2 ft (40 m) serial link isolated Modbus segment | Number of addresses | 0…248 character mode<br />0…248 Modbus |
Requests | 1 K data bytes per request character mode<br />252 data bytes per RTU request Modbus<br />504 data bytes per ASCII request Modbus | Control parameter | One CRC on each frame (RTU) Modbus<br />One LRC on each frame (ASCII) character mode<br />One LRC on each frame (ASCII) Modbus |
Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data<br />Internal RAM 4096 kB<br />Internal RAM 256 kB data<br />Internal RAM 3584 kB program constants and symbols | Maximum size of object areas | 256 kB unlocated internal data<br />32634 %Mi located internal bits |
Default size of object areas | 1024 %MWi internal words located internal data<br />256 %KWi constant words located internal data<br />512 %Mi located internal bits | Application structure | 1 cyclic/periodic master task<br />No auxiliary task<br />64 event tasks<br />1 periodic fast task |
Execution time per instruction | 0.12 µs Boolean<br />0.17 µs double-length words<br />0.25 µs single-length words<br />1.16 µs floating points | Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />8.1 Kinst/ms 100 % Boolean |
System overhead | 0.13 ms fast task<br />0.7 ms master task | Current consumption | 90 mA 24 V DC |
Supply | Internal power supply via rack | marking | CE |
Status LED | 1 LED (Green) integrated machine/installation bus operational (CAN RUN)<br />1 LED (Green) processor running (RUN)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Red) integrated machine/installation bus fault (CAN ERR)<br />1 LED (Red) memory card fault (CARD ERR)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Yellow) activity on Modbus (SER COM) | Net Weight | 0.46 lb(US) (0.21 kg) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative Humidity | 10…95 % without condensation |
IP Degree of Protection | IP20 | Protective treatment | TC |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy |
Standards | EN 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G | Environmental characteristic | Hazardous location class I division 2 |
Specifications may be subject to change without notice
