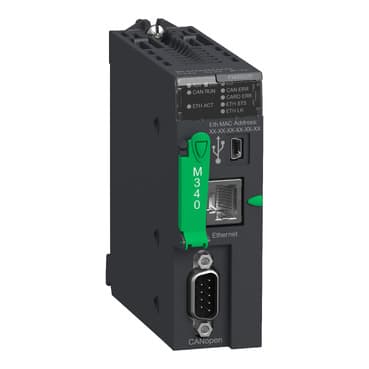

Product Model
BMXP3420302H
Selling Points
- 1High-Performance Processing: Supports up to 1024 discrete and 256 analog I/O for seamless automation.
- 2CANOpen Compatibility: Ensures transparent and reliable communication in severe environments.
- 3Robust Environmental Protection: Designed for operation in temperatures from -25°C to 70°C with IP20 protection.
- 4Advanced Memory Configuration: Includes 4096 kB internal RAM, 3584 kB for program constants and symbols, and a supplied memory card for web server activation.
- 5Efficient Communication: Supports Ethernet TCP/IP, Modbus TCP messaging, and AS-Interface modules for comprehensive data management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M340 automation platform | Product or Component Type | Processor module |
Product Specific Application | For severe environments | Concept | CANopen<br />Transparent Ready |
Number of racks | 4 | Number of slots | 11 |
Discrete I/O processor capacity | 1024 I/O multi-rack configuration<br />704 I/O single-rack configuration | Analogue I/O processor capacity | 256 I/O multi-rack configuration<br />66 I/O single-rack configuration |
Number of application specific channel | 36 | Control channels | Programmable loops |
Motion control | Independent axis CANopen | Integrated connection type | USB port 12 Mbit/s<br />CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s<br />Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s |
Communication module processor capacity | 2 Ethernet communication module<br />4 AS-Interface module | embedded communication service | Network management (NMT) CANopen<br />Process Data Object (PDO) CANopen<br />Service Data Object (SDO) CANopen<br />Special functions (SYNC, EMCY, TIME) CANopen<br />Bandwidth management, Ethernet TCP/IP<br />Data Editor, Ethernet TCP/IP<br />Modbus TCP messaging, Ethernet TCP/IP<br />Rack Viewer, Ethernet TCP/IP<br />SNMP network administrator, Ethernet TCP/IP |
Port Ethernet | 10BASE-T/100BASE-TX | Transmission rate | 1 Mbit/s 0.0000000000…65.6 ft (0…20 m) 0.0000000000…2.0 ft (0…0.6 m)<br />125 kbit/s 0.0000000000…1640.4 ft (0…500 m) 0.0000000000…32.8 ft (0…10 m)<br />20 kbit/s 0.0000000000…8202.10 ft (0…2500 m) 0.0000000000…984.3 ft (0…300 m)<br />250 kbit/s 0.0000000000…820.2 ft (0…250 m) 0.0000000000…32.8 ft (0…10 m)<br />50 kbit/s 0.0000000000…3280.8 ft (0…1000 m) 0.0000000000…393.7 ft (0…120 m)<br />500 kbit/s 0.0000000000…328.08 ft (0…100 m) 0.0000000000…32.8 ft (0…10 m)<br />800 kbit/s 0.0000000000…131.2 ft (0…40 m) 0.0000000000…19.7 ft (0…6 m) |
Bus type | CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA<br />CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA<br />CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA | Number of server device(s) | 63 CANopen |
Number of devices per segment | 0…16 672.6 ft (205 m) CANopen)<br />0…32 607.0 ft (185 m) CANopen)<br />0…64 524.9 ft (160 m) CANopen) | Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data<br />Internal RAM 4096 kB<br />Internal RAM 256 kB data<br />Internal RAM 3584 kB program constants and symbols<br />Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
Maximum size of object areas | 256 kB unlocated internal data<br />32634 %Mi located internal bits | Default size of object areas | 1024 %MWi internal words located internal data<br />256 %KWi constant words located internal data<br />512 %Mi located internal bits |
Application structure | 1 periodic fast task<br />No auxiliary task<br />1 cyclic/periodic master task<br />64 event tasks | Execution time per instruction | 0.12 µs Boolean<br />0.17 µs double-length words<br />0.25 µs single-length words<br />1.16 µs floating points |
Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />8.1 Kinst/ms 100 % Boolean | System overhead | 0.13 ms fast task<br />0.7 ms master task |
Current consumption | 135 mA 24 V DC | Supply | Internal power supply via rack |
marking | CE | Status LED | 1 LED (Green) activity on Ethernet network (ETH ACT)<br />1 LED (Green) integrated machine/installation bus operational (CAN RUN)<br />1 LED (Green) processor running (RUN)<br />1 LED (Green) status of Ethernet network (ETH STS)<br />1 LED (Red) data rate (ETH 100)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Red) integrated machine/installation bus fault (CAN ERR)<br />1 LED (Red) memory card fault (CARD ERR)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Yellow) activity on Modbus (SER COM) |
Net Weight | 0.474 lb(US) (0.215 kg) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation | IP Degree of Protection | IP20 |
Protective treatment | Conformal coating | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
