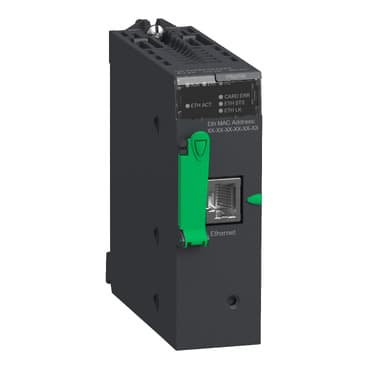

schneider BMXPRA0100

Selling Points

  • 1Comprehensive Compatibility: Compatible with Modicon X80 DIO drops in Quantum/Premium/M340/M580 I/O architectures.
  • 2Efficient Communication: Communicates via I/O scanning with the master PAC for seamless integration.
  • 3High-Performance Module: Provides 1 module per Ethernet Modbus TCP DIO drop, ensuring efficient data transmission.
  • 4Robust Technical Specifications: Supports up to 1024 digital inputs/outputs and 256 analog inputs/outputs.
  • 5Enhanced Reliability: Compliant with RoHS and SVHC regulations, ensuring environmental safety and compliance.
Product Details
BMXPRA0100
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Peripheral remote I/O adaptor
Number of port
1
Integrated connection type
Ethernet/IP device network
communication port protocol
Modbus TCP
Realtime clock
With
Memory capacity
448 kB internal<br />96 kB removable
Application structure
1 master task
Local signalling
for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for external fault (I/O) 1 LED (red)<br /> for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for Ethernet link diagnostics (STS) 1 LED (green)<br /> for Ethernet network status (link) 1 LED (green)
Product compatibility
0…1024 discrete I/O module<br />0…256 analog I/O module<br />0…2 Ethernet module
Average consumption in mA
95 mA
Power dissipation in W
2.3 W
marking
CE
Module format
Standard
Maximum altitude transport
9842.5 ft (3000 m)
Relative Humidity
95 % without condensation
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Environmental characteristic
Hazardous location class I division 2
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
<= 6561.68 ft (2000 m)
