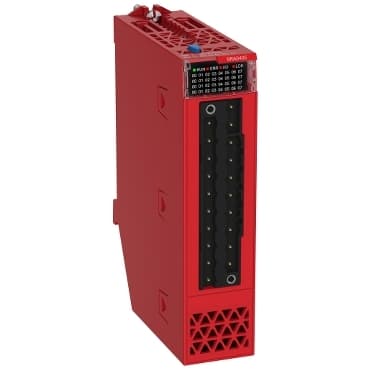

Product Model
BMXSRA0405
Selling Points
- 1The BMXSRA0405 features four discrete relay outputs for precise control in automation systems.
- 2Compatible with 24-240V AC and 12-24V DC, making it versatile for various industrial applications.
- 3Activates in 12 ms and deactivates in 6 ms, ensuring quick and reliable output switching.
- 4Designed to withstand 10 million mechanical cycles and 80000 electrical cycles at 250 VA, ensuring long-lasting performance.
- 5Equipped with external short-circuit protection, overvoltage protection, and output overload protection for enhanced safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
Discrete output number | 4 EN/IEC 61131-2 | Discrete output type | Relay |
Discrete output voltage | 24...240 V 10...264 V AC<br />12...24 V 10...34 V DC | [Ith] conventional free air thermal current | 5 A |
Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 3.9 W |
Response time on output | 12 ms activation<br />6 ms deactivation | Typical current consumption | 240 mA 3.3 V DC<br />130 mA 24 V DC |
MTBF reliability | 624000 H | Protection type | External short-circuit protection<br /> overvoltage protection, inductive AC<br /> overvoltage protection, inductive DC<br />External overload protection |
Output overload protection | Use 1 fast blow fuse per channel or group of channel | Output overvoltage protection | Use discharge diode on each output DC<br />Use RC circuit on each output AC<br />Use ZNO surge limiter on each output AC |
Output short-circuit protection | Use 1 fast blow fuse per channel or group of channel | Minimum switching current | 10 mA 5 V DC |
Maximum switching voltage | 230 V AC | Mechanical durability | 10000000 cycles |
Electrical durability | AC-15 80000 cycles 250 VA 250 V -13…140 °F (-25…60 °C)<br />AC-15 80000 cycles 500 VA 250 V -13…140 °F (-25…60 °C)<br />AC-15 80000 cycles 750 VA 250 V -13…140 °F (-25…60 °C)<br />AC-12 250000 cycles 250 VA 250 V -13…140 °F (-25…60 °C)<br />AC-12 70000 cycles 500 VA 250 V -13…140 °F (-25…60 °C)<br />AC-12 30000 cycles 1000 VA 250 V -13…140 °F (-25…60 °C)<br />DC-13 80000 cycles 24 VA 24 V -13…140 °F (-25…60 °C)<br />DC-13 50000 cycles 48 VA 24 V -13…140 °F (-25…60 °C)<br />DC-13 30000 cycles 96 VA 24 V -13…140 °F (-25…60 °C)<br />DC-12 1000000 cycles 24 VA 24 V -13…140 °F (-25…60 °C)<br />DC-12 500000 cycles 48 VA 24 V -13…140 °F (-25…60 °C)<br />DC-12 300000 cycles 120 VA 24 V -13…140 °F (-25…60 °C) | Switching frequency | <= 50 Hz |
Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.320 lb(US) (0.145 kg) |
IP Degree of Protection | IP20 | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 |
Dielectric strength | 2000 V AC 50/60 Hz 1 min | Vibration resistance | 3 gn |
Shock resistance | 15 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
