Product Model

BMXXBP0800H

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29811

In Stock
Last updated: 2025/4/19
View Specifications

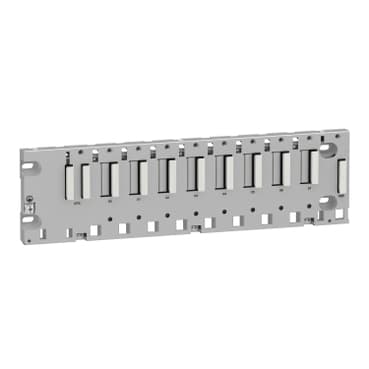

schneider BMXXBP0800H

Selling Points

  • 1Ruggedized design for harsh environments.
  • 2Compatible with Modicon X80 automation platform.
  • 38 bus X slots for versatile expansion.
  • 4IP20 protection for reliable operation.
  • 5Wide operating temperature range from 0°C to 60°C.
Product Details
BMXXBP0800H
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Ruggedized backplane
Product Specific Application
For severe environments
Number of slots
8 bus X
Product Compatibility
BMXP34 processor<br />BMXCPS power supply<br />I/O module<br />Specific application module
Power consumption in W
2.21 W
Electrical connection
1 connector (XBE) expansion module
Fixing mode
By 4 M4/M5/M6 screws panel<br />By 4 M4/M5/M6 screws mounting plate<br />By clips 35 mm symmetrical DIN rail
Height
4.08 in (103.7 mm)
Width
14.7 in (372.8 mm)
Depth
0.7 in (19 mm)
Net Weight
2.09 lb(US) (0.95 kg)
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation
Protective treatment
Conformal coating
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />UKCA<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2

Specifications may be subject to change without notice
