Product Model

BMXXBP1200

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29812

In Stock
Last updated: 2025/4/19
View Specifications

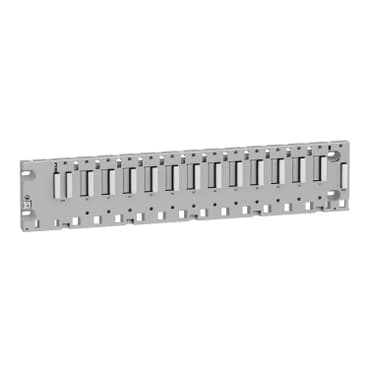

schneider BMXXBP1200

Selling Points

  • 112-Slot Design: Accommodates various modules like I/O modules, processors, and power supplies.
  • 2Energy Efficiency: Low power consumption of 0.74 watts ensures energy efficiency.
  • 3IP20 Protection: Protected against solid objects larger than 12.5mm, suitable for clean environments.
  • 4Versatile Mounting: Mountable on panels or plates with screws of 4.32 to 6.35 mm diameter.
  • 5Robust Performance: Integrated EMC filter and Energy Adaptation system for stable performance in dynamic loads.
Product Details
BMXXBP1200
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Backplane
Number of slots
12 bus X
Product Compatibility
BMXP34 processor<br />BMXCPS power supply<br />I/O module<br />Specific application module
Power consumption in W
0.17 W
Electrical connection
1 connector (XBE) expansion module
Fixing mode
By 4 M4/M5/M6 screws panel<br />By 4 M4/M5/M6 screws mounting plate
Height
4.08 in (103.7 mm)
Width
19.8 in (503.2 mm)
Depth
0.7 in (19 mm)
Net Weight
2.80 lb(US) (1.27 kg)
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative Humidity
10…95 % without condensation
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />UKCA<br />Merchant Navy
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G

Specifications may be subject to change without notice
