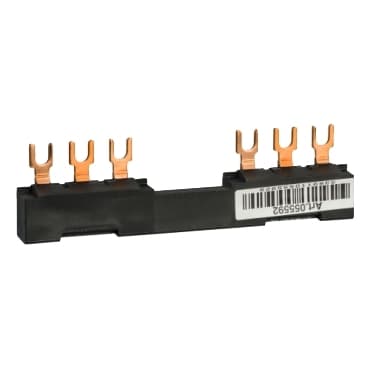

Product Model
GV2G272
Selling Points
- 1High Amperage Capacity: The GV2G272 supports up to 63A, making it suitable for demanding applications.
- 22 Tap Offs: Features two tap-off outlets for paralleling devices, enhancing flexibility.
- 372mm Pitch: Designed with a 72mm pitch for efficient and organized wiring.
- 4Sustainable Design: Compliant with Green Premium standards, ensuring environmental sustainability.
- 5Robust Insulation: Rated for 690V insulation voltage, ensuring reliable performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | Linergy | Product name | FT |
Device short name | GV2G | Product or Component Type | Comb busbar |
accessory / separate part category | Connection accessory | Poles description | 3P |
Range compatibility | TeSys D<br />TeSys GV2<br />TeSys K<br />TeSys U | Number of tap-offs | 2 |
[Ith] conventional free air thermal current | 63 A | Connection pitch | 2.8 in (72 mm) |
Mounting Location | On terminal | [Ui] Rated Insulation Voltage | 690 V |
Length | 4.6 in (116 mm) | Net Weight | 0.11 lb(US) (0.05 kg) |
Specifications may be subject to change without notice
