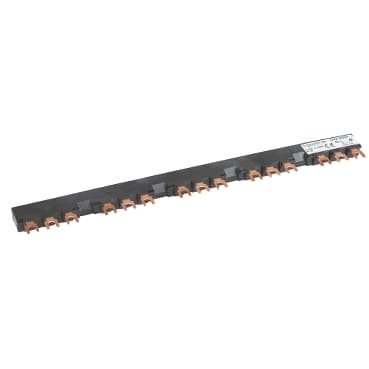

Product Model
GV2G554
Selling Points
- 1Designed for reliability and efficiency in electrical systems.
- 2Suitable for use with TeSys GV2, D, K, U Manual Starters and Controllers.
- 310.63 inches in length, ideal for space-constrained installations.
- 4600 VAC, 63 A, 5 tap-offs, and 54 mm pitch for precise control.
- 5Easy screw clamp connection for secure and efficient mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | Linergy | Product name | FT |
Device short name | GV2G | Product or Component Type | Comb busbar |
accessory / separate part category | Connection accessory | Poles description | 3P |
Range compatibility | TeSys Deca<br />TeSys GV2<br />TeSys K<br />TeSys U | Number of tap-offs | 5 |
[Ith] conventional free air thermal current | 63 A | Connection pitch | 2.1 in (54 mm) |
Mounting Location | On terminal | [Ui] rated insulation voltage | 690 V |
Length | 10.2 in (260 mm) | Net Weight | 0.2 lb(US) (0.1 kg) |
Specifications may be subject to change without notice
