Product Model

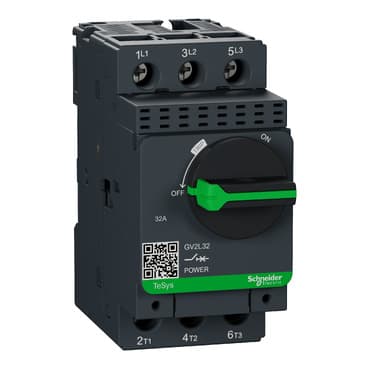

GV2L32
Selling Points
- 1The GV2L32 offers a high breaking capacity of 50kA at 400V, ensuring reliable short-circuit protection.
- 2Equipped with magnetic protection technology, this circuit breaker provides precise tripping at 416-416 A.
- 3Compliant with IP20 standards, it offers robust protection against dust and water ingress.
- 4Designed for easy installation on DIN rail, ensuring a secure and reliable connection.
- 5Meets multiple international standards including IEC, CCC, EAC, and Marine certifications for global compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | TeSys Deca | Product name | TeSys GV2 |
Product or Component Type | Motor circuit breaker | Device short name | GV2L |
Device Application | Motor protection | Trip unit technology | Magnetic |
Poles description | 3P | Network type | AC |
Utilisation category | Category A IEC 60947-2<br />AC-3 IEC 60947-4-1<br />AC-3e IEC 60947-4-1 | Network frequency | 50/60 Hz IEC 60947-2 |
Motor power kW | 15 kW 400/415 V AC 50/60 Hz<br />18.5 kW 500 V AC 50/60 Hz<br />22 kW 690 V AC 50/60 Hz | Breaking capacity | 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2<br />50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2<br />20 kA Icu 440 V AC 50/60 Hz IEC 60947-2<br />10 kA Icu 500 V AC 50/60 Hz IEC 60947-2<br />4 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
[Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2<br />50 % 400/415 V AC 50/60 Hz IEC 60947-2<br />75 % 440 V AC 50/60 Hz IEC 60947-2<br />75 % 500 V AC 50/60 Hz IEC 60947-2<br />100 % 690 V AC 50/60 Hz IEC 60947-2 | Control Type | Rotary handle |
Line Rated Current | 32 A | Thermal protection adjustment range | 24…32 A IEC 60947-4-1 |
Magnetic tripping current | 537.6 A | [Ith] conventional free air thermal current | 32 A IEC 60947-4-1 |
[Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 | [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 | Suitability for isolation | Yes IEC 60947-1 |
Power dissipation per pole | 1.8 W | Mechanical durability | 100000 cycles |
Electrical durability | 100000 cycles AC-3 415 V In<br />100000 cycles AC-3e 415 V In | Rated duty | Continuous IEC 60947-4-1 |
Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal | Fixing mode | 35 mm symmetrical DIN rail clipped<br />Panel screwed with 2 x M4 screws) |
Mounting position | Horizontal<br />Vertical | Width | 1.8 in (45 mm) |
Height | 3.5 in (89 mm) | Depth | 3.8 in (97 mm) |
Net Weight | 0.73 lb(US) (0.33 kg) | color | Dark grey |
Standards | EN/IEC 60947-2<br />EN/IEC 60947-4-1<br />IEC/EN 60335-2-40:Annex JJ | Product Certifications | CB Scheme<br />UKCA<br />CE<br />CCC<br />EAC<br />BV<br />RINA<br />DNV-GL |
IK degree of protection | IK04 | IP degree of protection | IP20 IEC 60529 |
Climatic withstand | IACS E10 | Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 | Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
Mechanical robustness | Shocks 30 Gn for 11 ms<br />Vibrations 5 Gn, 5...150 Hz | Operating altitude | 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
