Product Model

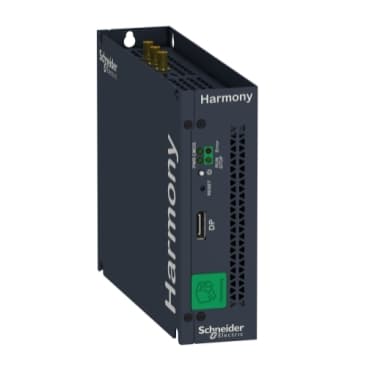

HMIBMIEA5DD1E01
Selling Points
- 1Fanless Intel Atom Apollo Lake E3930 dual-core processor for reliable performance.
- 264GB eMMC storage for efficient data management.
- 3TPM (Trusted Platform Module) for advanced security features.
- 4Multiple I/O ports including USB 3.0, USB 2.0, COM (RS-232/422/485), and Gigabit Ethernet.
- 5Compact design suitable for edge computing and IoT applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Modular box PC |
Device short name | Modular BOX PC basic Optimized | Range Compatibility | IDisplay<br />Modular Display HMIDM |
Accessory / separate part destination | PC panel HMIDM modular display | Processor name | Intel Atom E3930 upto 1.8 GHz |
Operating system | Windows 10 IoT Enterprise 64 bitmulti-language | Software package | Node-RED and system nodes restore IIoT Wiring Operating System Restore<br />McAfee white listing installer cyber security license not included<br />EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included |
Mounting Location | Book mounting<br />Flat mounting<br />Wall mounting | Data storage equipment | 64 GB eMMC (soldered) |
Memory description | 4 GB RAM DDR3 internal not expandable) | Number of slots | 1 slot(s) for mini PCI Express full-size with optional interface plate, |
Number of slots available for expansion | 1.0 mini PCIe | Display resolution | 3200 x 2000 pixels at 60 Hz |
Watchdog timer | 1…255 ms | Type of cooling | Fanless |
Electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom<br />Connector, connector type: SMA, 3 ways - location: top | Integrated connection type | Display port 1 front<br />Ethernet 2 RJ45 Realtek 8111G 10/100/1000 Mbps bottom IEEE 1588 not supported<br />COM1 serial link battery backup 1 male SUB-D 9 RS232/422/485 bottom non-isolated<br />USB 2.0 port 1.0 USB type A 480 Mbit/s bottom<br />USB 3.0 port 1.0 USB type A 5 Gbit/s bottom<br />TPM connector Ver 2.0 cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed motherboard |
Cyber secured boot | Secure password boot UEFI | [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply |
Supply voltage limits | 9.6…28.8 V | Inrush current | 2.03 A |
Power consumption in W | 20.0 W box)<br />15.0 W with 4:3 12" display HMIDM6421)<br />16.0 W with Wide 12" display HMIDM6521)<br />17.0 W with 4:3 15" display HMIDM7421)<br />19.0 W with Wide 15" display HMIDM7521)<br />20.0 W with Wide 19" display HMIDM9521)<br />21.0 W with Wide 22" display HMIDMA521) | Control type | ON/OFF button |
Main type | Basic Optimised | Depth | 1.8 in (46 mm) |
Height | 5.9 in (150 mm) | Width | 7.4 in (187 mm) |
Net Weight | 2.6 lb(US) (1.2 kg) | Standards | Class A group 1 IEC 55011<br /> IEC 61000-6-4<br /> IEC 61131-2<br /> FCC part 15<br /> UL 60950 |
Product certifications | CE<br />CULus<br />UL 60950 for IT equipments<br />EAC<br />CCC<br />RCM | Quality labels | CE |
Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive | IP degree of protection | IP40 IEC 60529 |
Electromagnetic compatibility | Immunity to high frequency interference conforming to IEC 61000-4<br />Disturbing field emission class A conforming to IEC 55011<br />Conducted and radiated emissions class A conforming to EN 55022 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 |
Relative Humidity | 10…95 % non-condensing IEC 60068-2-30 | Ambient air temperature for operation | 32…122 °F (0…50 °C) by default)mini PCIe IEC 60068-2-2<br />32…122 °F (0…50 °C) flat mountingmini PCIe<br />32…113 °F (0…45 °C)<br />32…113 °F (0…45 °C) flat mounting |
Operating altitude | 6561.68 ft (2000 m) IEC 60664-1 | Vibration resistance | 2 gn 5…500 Hz) eMMC |
Specifications may be subject to change without notice
