Product Model

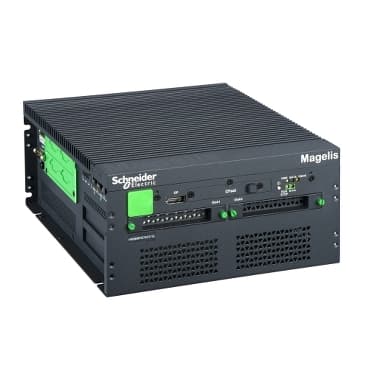

HMIBMPSI74D470L
Selling Points
- 1Industrial-grade design: Built for harsh environments with IP40 protection.
- 2High-performance specs: Equipped with an Intel Core i7-4650U processor and 8GB DDR3 RAM.
- 3Versatile connectivity: Supports RS-232, RS-485, RS-422, and Ethernet communication.
- 4Expandable slots: Features 4 expansion slots for mini-PCIe and PCL express.
- 5Secure and reliable: Includes a TPM 2.0 module for cybersecurity encryption and Windows 7 (64-bit) OS pre-installed.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Modular box PC |
Device short name | Modular BOX PC Performance | Range Compatibility | IDisplay<br />Modular Display HMIBM |
Accessory / separate part destination | PC panel HMIDM modular display | Processor name | Intel Core i7 4650U 1.7 GHz turbo boost at 3.3 GHz |
Chipset type | Intel QM87 | Video controller type | Intel HD Graphics 5000 |
Operating system | Windows 7 64 bits Ultimate SP1multi-language | Software package | Node-RED and system nodes restore IIoT Wiring Operating System Restore<br />McAfee white listing installer cyber security license not included<br />EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included |
Mounting Location | Flat mounting<br />Book mounting<br />Wall mounting | Data storage equipment | 256 GB Flash disk SSD MLC 2000000 h |
Memory description | 8 GB RAM DDR3 internal not expandable)<br />512 KB MRAM internal | Free slots | 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology<br />1 CFast<br />1 mSATA |
Number of slots | 1 slot(s) for PCI<br />1 slot(s) for PCI express 4x<br />2 slot(s) for mini PCI Express full-size | Number of slots available for expansion | 2 mini PCIe<br />1 PCI<br />1 PCI express 4x |
Display resolution | 3200 x 2000 pixels at 60 Hz | Watchdog timer | 1…255 ms |
Type of cooling | Fanless<br />Fan required to mount PCI/PCIe cards above 3 W | Electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom<br />Connector, connector type: SMA, 3 ways - location: top |
Integrated connection type | Display port 1 bottom<br />Display port 1 front<br />Ethernet 2 RJ45 I210 10/100/1000 Mbps bottom IEEE 1588 supported<br />COM1 serial link battery backup 1 male SUB-D 9 RS232/422/485 bottom<br />USB 2.0 port 2 USB type A 480 Mbit/s bottom<br />USB 3.0 port 2 USB type A 5 Gbit/s bottom<br />TPM connector Ver 1.2 cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed motherboard | [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply |
Supply voltage limits | 18…36 V | Inrush current | 8.9 A |
Power consumption in W | 40.0 W box)<br />44.0 W with 4:3 12" display HMIDM6421)<br />43.0 W with Wide 12" display HMIDM6521)<br />45 W with 4:3 15" display HMIDM7421)<br />46 W with Wide 15" display HMIDM7521)<br />48 W with Wide 19" display HMIDM9521)<br />51 W with Wide 22" display HMIDMA521) | Control type | ON/OFF button |
Main type | Performance | Depth | 4.06 in (103.2 mm) |
Height | 8.1 in (207 mm) | Width | 10.0000000000 in (254 mm) |
Net Weight | 8.6 lb(US) (3.9 kg) | Standards | Class A group 1 EN 55011<br /> EN 61000-6-4<br /> EN 61131-2<br /> FCC part 15<br /> UL 61010 |
Product certifications | CE<br />CULus<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />ATEX<br />CCC<br />RCM<br />Marine GL Bridge<br />EAC<br />IEC Ex hazardous locations 3GD zone 2/22 | Quality labels | CE |
Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive | IP degree of protection | IP40 IEC 60529 |
Electromagnetic compatibility | Immunity to high frequency interference conforming to IEC 61000-4<br />Disturbing field emission class A conforming to EN 55011<br />Conducted and radiated emissions class A conforming to EN 55022 | Ambient air temperature for storage | -22…158 °F (-30…70 °C) IEC 60068-2-2<br />-22…158 °F (-30…70 °C) IEC 60068-2-14 |
Relative Humidity | 10…95 % non-condensing EN/IEC 60068-2-30 | Ambient air temperature for operation | 32…131 °F (0…55 °C) by default) EN/IEC 60068-2-2<br />32…122 °F (0…50 °C) flat mounting<br />32…113 °F (0…45 °C)PCI/PCIe HMIDM modular display with HDD<br />32…104 °F (0…40 °C) flat mountingHDD<br />32…104 °F (0…40 °C) flat mountingmini PCIe<br />32…104 °F (0…40 °C) flat mountingPCI/PCIe<br />32…113 °F (0…45 °C) 2mini PCIe HMIDM modular display |
Operating altitude | 2000 IEC 60664-1 | Vibration resistance | 2 gn 5…500 Hz) SSD or CFast<br />1 gn 5…500 Hz) HDD |
Specifications may be subject to change without notice
