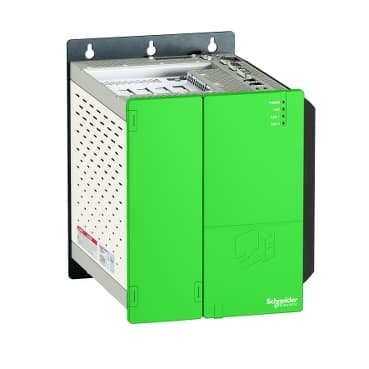

schneider HMIBPFDD57F1

Selling Points

  • 1Rugged and certified for harsh industrial environments, ensuring reliability in demanding settings.
  • 2Integrated SD card reader and 2 GB Compact Flash card for user storage and data management.
  • 3High-performance 10/100/1000 Mbps Ethernet ports and 1 x RS232C port for seamless connectivity.
  • 4Bright 10.4" or 15" LCD TFT LED touch screens with 16 million colors, offering excellent visibility.
  • 5IP65 and NEMA 4X indoor protection, ensuring durability and ease of cleaning in food and beverage processing environments.
Product Details
HMIBPFDD57F1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony iPC
Product or Component Type
Operator dialogue terminal
Device short name
BOX PC Performance
Range Compatibility
Harmony iDisplay
compatibility code
BOX PC Performance
Processor name
Core 2 Duo P8400 2.26 GHz cache 3 MB
Chipset type
Intel GM45 1066 MHz
Video controller type
Mobile Intel Graphics Media Accelerator (GMA) 4500MHD, 224 Mb
Operating system
Windows 10 IoT Enterprise 64 bit switched from Windows 8.1 in Q1 2018)multi-language
Software package
Vijeo Designer run time demo<br />Vijeo Citect client/server, 500 I/O
Data storage equipment
60 GB Flash disk SSD MLC 2000000 h
Port Ethernet
10BASE-T/100BASE-T/1000BASE-T
Memory description
4 GB RAM DDR3 internal not expandable)<br /> SDRAM saved memory
Number of slots
2 slot(s) for PCI<br />3 slot(s) for PCI express 1x
Drive type
DVD-RW
Type of cooling
Fan
Integrated connection type
Ethernet TCP/IP 2 RJ45<br />DVI-I video port DVI-I<br />COM1 serial link male SUB-D 9 RS232C 115 kbauds<br />COM2 serial link male SUB-D 9 RS232C 115 kbauds<br />DVI-I video port (optional) DVI-I<br />COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds<br />USB 2.0 port USB type A 480 Mbit/s front panel<br />USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage
24 V DC power supply
Supply voltage limits
18…30 V
Line Rated Current
6 A
Inrush current
7 A
Control type
ON/OFF push-button equipment ON and OFF)<br />Push-button reset)
Main type
Performance
Height
10.6 in (270 mm)
Width
10.2 in (260 mm)
Net Weight
8.6 lb(US) (3.9 kg)
Standards
CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 1604<br /> UL 508<br />Class I division 2 CSA C22.2 No 213
Product certifications
CE<br />CULus<br />ATEX zone 22 dust<br />C-tick<br />GOST
Pollution degree
2 EN 61131-2 Ed.3
Electromagnetic compatibility
Immunity to high frequency interference conforming to EN 61131-2 Ed.3
Ambient air temperature for storage
-4…140 °F (-20…60 °C) IEC 60068-2-2 test Ab<br />-4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na
Relative Humidity
10…85 % IEC 60068-2-30 test Db
Ambient air temperature for operation
32…122 °F (0…50 °C) vertical installation) EN 61131-2 Ed.3<br />32…113 °F (0…45 °C) vertical installation when using RAID option) EN 61131-2 Ed.3<br />41.0000000000…113.0000000000 °F (5…45 °C) vertical installation when using DVD writer) EN 61131-2 Ed.3
Operating altitude
6561.68 ft (2000 m) EN 61131-2 Ed.3
Vibration resistance
1.75 mm 2…9 Hz) continuous IEC 60068-2-6<br />3.5 mm 2…9 Hz) intermittently IEC 60068-2-6<br />0.5 gn 9…200 Hz) continuous IEC 60068-2-6<br />1 gn 9…200 Hz) intermittently IEC 60068-2-6
