Product Model

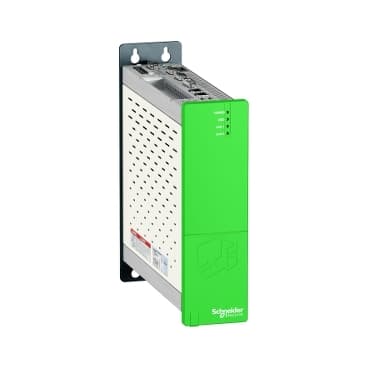

HMIBUCND1E01
Selling Points
- 1Compact and fanless design for reliable operation in harsh environments.
- 2Powered by Intel Atom N270 processor at 1.66 GHz with 512 kB cache.
- 3Equipped with 2 GB RAM DDR2 and 1 Compact Flash card slot.
- 4Supports Ethernet connectivity with 10BASE-T/100BASE-T/1000BASE-T speeds.
- 5Compliant with industrial standards such as UL 508, UL 1604, and ATEX Zone 22 dust.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Operator dialogue terminal |
Device short name | BOX PC Universal | Range Compatibility | Harmony iDisplay |
compatibility code | BOX PC Universal | Processor name | Atom N270 1.66 GHz cache 512 KB |
Chipset type | Intel 945GME | Video controller type | Intel Graphics Media Accelerator 950, 224Mb |
Operating system | Windows Embedded Standard WES2009English<br />Windows Embedded Standard WES2009French<br />Windows Embedded Standard WES2009German<br />Windows Embedded Standard WES2009Italian<br />Windows Embedded Standard WES2009Spanish<br />Windows Embedded Standard WES2009Swedish<br />Windows Embedded Standard WES2009Chinese<br />Windows Embedded Standard WES2009Portuguese<br />Windows Embedded Standard WES2009Russian | Software package | Vijeo Designer run time demo<br />.NET Framework 3.5<br />Adobe PDF and multimedia reader<br />Internet Explorer<br />Viewer Word/Excel/Power Point<br />Vijeo Citect web client |
Data storage equipment | 4 GB Compact Flash card | Port Ethernet | 10BASE-T/100BASE-T/1000BASE-T |
Memory description | 2 GB RAM DDR2 internal not expandable)<br /> SDRAM saved memory | Number of slots | 1 slot(s) for PCI |
Type of cooling | Fanless | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />DVI-I video port DVI-I<br />COM1 serial link male SUB-D 9 RS232C 115 kbauds<br />COM2 serial link male SUB-D 9 RS232C 115 kbauds<br />DVI-I video port (optional) DVI-I<br />COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds<br />USB 2.0 port USB type A 480 Mbit/s front panel<br />USB 2.0 port 4 USB type A 480 Mbit/s top panel |
[Us] rated supply voltage | 24 V DC power supply | Supply voltage limits | 18…30 V |
Line Rated Current | 6 A | Inrush current | 7 A |
Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) | Main type | Universal |
Height | 10.6 in (270 mm) | Width | 10.2 in (260 mm) |
Net Weight | 4.9 lb(US) (2.2 kg) | Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 1604<br /> UL 508<br />Class I division 2 CSA C22.2 No 213 |
Product certifications | CE<br />CULus<br />ATEX zone 22 dust<br />C-tick<br />GOST<br />GL | Pollution degree | 2 EN 61131-2 Ed.3 |
Electromagnetic compatibility | Immunity to high frequency interference conforming to EN 61131-2 Ed.3 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Ab<br />-4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na |
Relative Humidity | 10…85 % IEC 60068-2-30 test Db | Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation) EN 61131-2 Ed.3 |
Operating altitude | 6561.68 ft (2000 m) EN 61131-2 Ed.3 | Vibration resistance | 1.75 mm 2…9 Hz) continuous IEC 60068-2-6<br />3.5 mm 2…9 Hz) intermittently IEC 60068-2-6<br />0.5 gn 9…200 Hz) continuous IEC 60068-2-6<br />1 gn 9…200 Hz) intermittently IEC 60068-2-6 |
Specifications may be subject to change without notice
