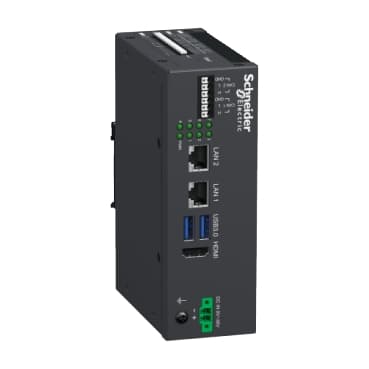

Product Model
HMIBX1A0NDA
Selling Points
- 1Advanced Linux OS: Run Linux Debian 11 for robust control and compute capabilities.
- 2Dual Ethernet Ports: Ensure reliable connectivity with two RJ45 Gigabit Ethernet ports.
- 3Two Serial Ports: Support various serial protocols with switchable RS-232/422/485 ports.
- 424V DC Power Supply: Operate efficiently with a 24V DC power supply, reducing energy consumption.
- 5Cyber-Secure Boot: Enhance security with secure password boot and TPM module for data protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Essential edge controller |
Device short name | essential edge controller | Processor name | ARM Cortex-A53 quad core 1.6 GHz NXP i.MX8M Plus |
Operating system | Linux Debian 11 | Software package | EAE V 23.0 default |
Mounting Location | On DIN rail | Data storage equipment | 32 GB eMMC (soldered) |
Memory description | 4 GB RAM LPDDR4 internal not expandable) | Free slots | 1 microSD SD 3.0, max raw transfer rate 104 MBps Supports SD,SDHC,SDXC |
Number of slots | 2 slot(s) for Mini PCIe Connector (USB signal) | Number of slots available for expansion | 2 Mini PCIe Connector (USB signal) |
Display resolution | 1920 x 1080 pixels at 60 Hz | Type of cooling | Fanless |
Electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom | Integrated connection type | HDMI for display connection 1 front<br />Ethernet 2 RJ45 SMSC LAN7500 front<br />USB 3.0 type A 2 front<br />TPM connector Ver 2.0 TPM module by default motherboard |
Cyber secured boot | Secure password boot | [Us] rated supply voltage | 24 V DC power supply |
Supply voltage limits | 9…36 V | Inrush current | 6 A |
Power consumption in W | 24 W | Control type | Resettable |
Main type | Essential | Depth | 1.9 in (48 mm) |
Height | 5.54 in (140.76 mm) | Width | 3.9 in (98.2 mm) |
Net Weight | 33.5 oz (950 g) | Standards | EN 55011<br /> IEC 61000-6-1<br /> IEC 61131-2<br /> FCC part 15<br /> UL 61010-2-201<br /> CSA C22.2 No 61010-2-201 |
Product certifications | CE<br />UKCA<br />RCM<br />CULus | Quality labels | CE |
Ambient air temperature for storage | -40…176 °F (-40…80 °C) | Relative Humidity | 10…95 % non condensing |
Ambient air temperature for operation | 14…131 °F (-10…55 °C) |
Specifications may be subject to change without notice
