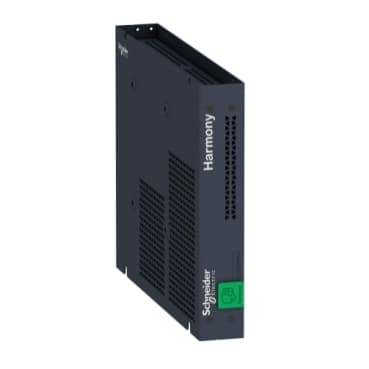

Product Model
HMIDADP11
Selling Points
- 1High Compatibility: Compatible with Harmony Modular iPC industrial PCs.
- 2Dual Power Supply: Supports both 24 V DC and 100-240 V AC external adaptors.
- 3Low Power Consumption: Power consumption ranges from 12.42 W to 29.12 W depending on the module.
- 4Advanced Connectivity: Features DisplayPort input and USB 2.0 port for touch screen signal output.
- 5Durable and Reliable: Certified for hazardous locations (IEC Ex, ATEX, CE) and operates in a wide temperature range (0-55°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Modular iPC | accessory / separate part type | Adaptor |
accessory / separate part category | Adaptation accessory | Product compatibility | Harmony iPC industrial PCs |
Accessory / separate part destination | Harmony modular display HMIDM | [Us] rated supply voltage | 24 V DC<br />100...240 V AC external adaptor |
Input voltage | 24 V DC<br />100...240 V AC external adaptor | Inrush current | 5.3 A |
Integrated connection type | Display port input video signal<br />1 USB (V2.0) port B output touch screen signal | Power consumption in W | 15.77 W HMIDM6422)<br />13.97 W HMIDM6522)<br />12.42 W HMIDM7421)<br />14.68 W HMIDM7521)<br />17.57 W HMIDM9521)<br />23.33 W HMIDMA521)<br />22.05 W HMIDM6422 receiver module)<br />20.02 W HMIDM6522 receiver module)<br />19.05 W HMIDM7421 receiver module)<br />21.29 W HMIDM7521 receiver module)<br />24 W HMIDM9521 receiver module)<br />29.12 W HMIDMA521 receiver module)<br />24.51 W HMIDM6422 transmitter and receiver module)<br />22.53 W HMIDM6522 transmitter and receiver module)<br />21.25 W HMIDM7421 transmitter and receiver module)<br />23.76 W HMIDM7521 transmitter and receiver module)<br />26.53 W HMIDM9521 transmitter and receiver module)<br />31.48 W HMIDMA521 transmitter and receiver module) |
Net Weight | 0.0000000000 lb(US) (0 kg)<br />4.0 lb(US) (1.8 kg)<br />5.3 lb(US) (2.4 kg) | Pollution degree | 2 |
Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) |
Operating altitude | 6561.68 ft (2000 m) | Product Certifications | IEC Ex hazardous locations 3GD zone 2/22<br />RCM<br />cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CCC<br />cULus CSA 22-2 No 142<br />EAC<br />ATEX<br />CE<br />cULus<br />cULus HazLoc Class I Division 2 CSA 22-2 No 213 |
Relative Humidity | 10…95 % non-condensing |
Specifications may be subject to change without notice
