schneiderHMI (Terminals and Industrial PC)
Product Model

HMIDID64DTD1

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

30095

In Stock
Last updated: 2025/4/19
View Specifications

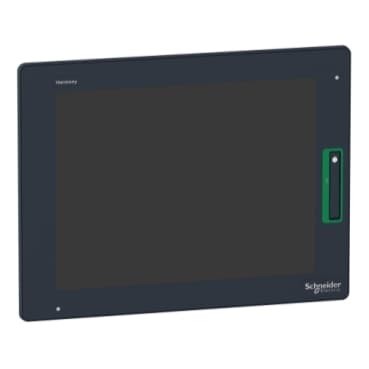

schneider HMIDID64DTD1

Selling Points

  • 1High-resolution display: 1024 x 768 pixels XGA resolution for clear visuals.
  • 2Multi-touch functionality: Supports up to 1,000,000 touch cycles for reliable operation.
  • 3Durable construction: IP67f front panel protection against dust and water, ensuring long-term reliability.
  • 4Wide operating range: Compatible with 12-24 V DC power supply, suitable for various industrial environments.
  • 5Long backlight lifespan: Up to 50,000 hours of continuous operation without needing replacement.
Product Details
HMIDID64DTD1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony iPC
Product or Component Type
Flat screen
Terminal type
Touchscreen display
Device mounting
Flush
Display resolution
1024 x 768 pixels XGA
Display size
12.1 inch
Aspect ratio
4:3
Display type
Colour TFT LCD
Display colour
16 million colours
Luminance
9.3 fc (100 cd/m²)<br />37.2 fc (400 cd/m²)
Backlight lifespan
50000 hours
Touch panel
Multi touch analogue resistive 1000000 cycles
Integrated connection type
DVI-D video port<br />USB 2.0 type A<br />USB 2.0 type mini B
Function Available
Brightness sensor
[Us] rated supply voltage
12...24 V DC power supply
Power consumption in W
17 W
Provided equipment
1 cable 16.4 ft (5 m) DVI-D<br />1 cable 16.4 ft (5 m) USB type A<br />1 USB cable mini B USB 2.0
cut-out dimensions
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
Depth
2.6 in (67 mm)
Height
9.5 in (241 mm)
Width
12.4 in (315 mm)
Net Weight
8.6 lb(US) (3.9 kg)
Standards
UL 508<br /> ANSI/ISA 12-12-01<br />Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142
Product certifications
RCM<br />EAC<br />CE
IP degree of protection
Front panel IP67f<br />Front panel IP66f UL 50E
NEMA degree of protection
NEMA 4X/13 front panel
Pollution degree
2
Ambient air temperature for storage
-4…140 °F (-20…60 °C)
Ambient air temperature for operation
32…140 °F (0…60 °C) EN 61131-2
Vibration resistance
3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2
Shock resistance
147 m/s² EN/IEC 61131-2

Specifications may be subject to change without notice
