Product Model

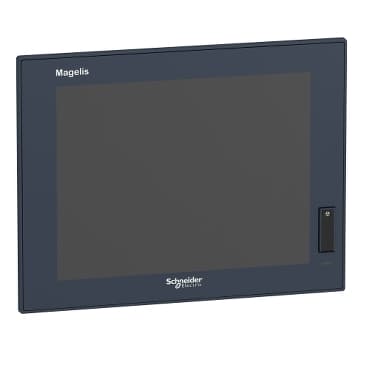

HMIDM6421
Selling Points
- 1Industrial-grade durability for operation in harsh environments.
- 2Advanced touchscreen resolution of 2048x2048 pixels.
- 3High contrast ratio of 500:1 for clear visibility.
- 4Flush device mounting for seamless integration.
- 5Support for Schneider Electric StruxureWare software for complete tested and validated solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Flat screen |
Terminal type | Touchscreen display | Device mounting | Flush |
Product Compatibility | Modular Box PC | View angle horizontal x vertical | 140 x 115° |
Contrast Ratio | 500:1 | Touchscreen resolution | 2048 x 2048 |
Display resolution | 1024 x 768 pixels XGA | Display size | 12.1 inch |
Aspect ratio | 4:3 | Display type | LED<br />Colour TFT LCD |
Display colour | 16777216 colors | Luminance | 27.9 fc (300 cd/m²) |
Backlight lifespan | 50000 hours 77 °F (25 °C) | Touch panel | Single touch analogue resistive |
Integrated connection type | USB 2.0 type A | Function Available | Operate with water on screen |
[Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 18…36 V |
Inrush current | 8.9 A | Power consumption in W | 57.87 W Box PC HMIBMP)<br />52.87 W Box PC HMIBMU) |
Local signalling | Status LED | Depth | Enclosure : 2.6 in (66.3 mm)<br />0.3 in (7 mm) |
Height | 9.6 in (245.1 mm) | Width | 12.6 in (319.1 mm) |
Net Weight | 5.07 lb(US) (2.3 kg) | Standards | Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> UL 6110-2-201<br />Class I division 2 ANSI/ISA 12-12-01 |
Product certifications | CE<br />C-tick<br />IEC-Ex<br />EAC | IP degree of protection | IP66 |
NEMA degree of protection | NEMA 4X | Pollution degree | 2 |
Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Relative Humidity | 10…95 % non-condensing |
Ambient air temperature for operation | 32…131 °F (0…55 °C) | Operating altitude | 6561.68 ft (2000 m) |
Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
