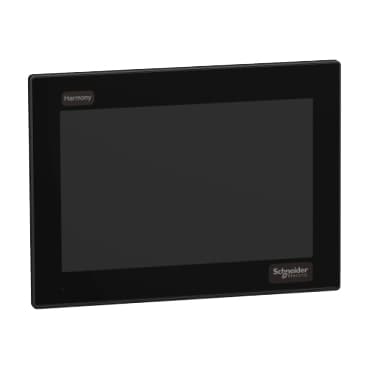

Product Model
HMIDM6500WC
Selling Points
- 1Features WXGA resolution (1,280 x 800 pixels) for clear visuals.
- 2Equipped with 2-point projected capacitive touch for intuitive interaction.
- 3Enhances user experience with reduced noise interference.
- 4Offers IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degrees of protection.
- 5Compatible with VESA 100 x 100 mount and front enclosure mounting for flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
Display size | 10.1 inch | Aspect ratio | 16:9 |
Display colour | 16 million colours | Pixel resolution | 1280 x 800 |
Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
cut-out dimensions | 255 (+ 1/- 0) x 185 (+ 1/- 0) mm | Width | 10.6 in (268.5 mm) |
Height | 7.8 in (198.5 mm) | Net Weight | 4.4 lb(US) (2.0 kg) |
Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
