Product Model

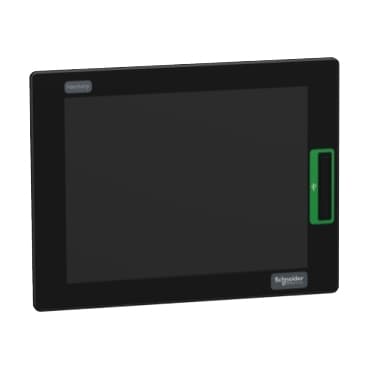

HMIDM6600TMCTO
Selling Points
- 1Industrial-grade construction with IP67F protection for harsh environments.
- 22-point multi-touch display for intuitive user interaction.
- 3Front USB interface for easy configuration and connectivity.
- 4Panel mounting and VESA direct mounting options for flexible installation.
- 51024 x 768 pixel XGA resolution for clear and detailed visuals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
Display size | 12.1 inch | Aspect ratio | 4:3 |
Display colour | 16 million colours | Pixel resolution | 1024 x 768 |
Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
cut-out dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm | Width | 12.4 in (315 mm) |
Height | 9.5 in (241 mm) | Net Weight | 5.3 lb(US) (2.4 kg) |
Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
