Product Model

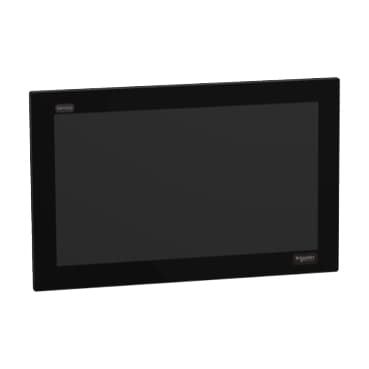

HMIDM6800WC
Selling Points
- 1High-Resolution Display: Features a 19" Full HD (1920 × 1080 pixels) display with 16 million colors.
- 2Multi-Touch Capability: Equipped with 2-point projected capacitive touch (PCAP) technology for precise and intuitive operation.
- 3Optimized Noise Filter: Includes an optimized noise filter to minimize environmental interference and ensure smooth touch response.
- 4Industrial Grade Protection: Offers IP66F and IP67F front panel protection, suitable for harsh industrial environments.
- 5Versatile Mounting Options: Compatible with VESA 100 × 100 mounting and direct mounting, providing flexibility in installation configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
Display size | 18.5 inch | Aspect ratio | 16:9 |
Display colour | 16 million colours | Pixel resolution | 1920 x 1080 |
Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
cut-out dimensions | 449.5 (+1/-0) x 279.5 (+1/-0) mm | Width | 18.3 in (463.6 mm) |
Height | 11.6 in (293.6 mm) | Net Weight | 10.8 lb(US) (4.9 kg) |
Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
