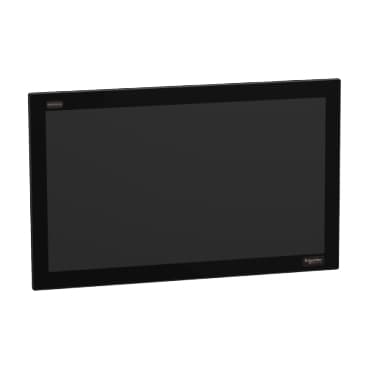

Product Model
HMIDM6900WCCTO
Selling Points
- 11920 x 1080 pixels Full HD for clear visibility.
- 22-point multi-touch for precise control.
- 3Glass front panel with IP67F protection for harsh environments.
- 4Available as Configured-To-Order (CTO) for tailored solutions.
- 5532.6mm x 330.6mm x 32mm, weighing 6.50Kg for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
Display size | 21.5 inch | Aspect ratio | 16:9 |
Display colour | 16 million colours | Pixel resolution | 1920 x 1080 |
Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
cut-out dimensions | 518.5 (+1/-0) x 316.5 (+1/-0) mm | Width | 21.0 in (532.6 mm) |
Height | 13.02 in (330.6 mm) | Net Weight | 14.3 lb(US) (6.5 kg) |
Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
