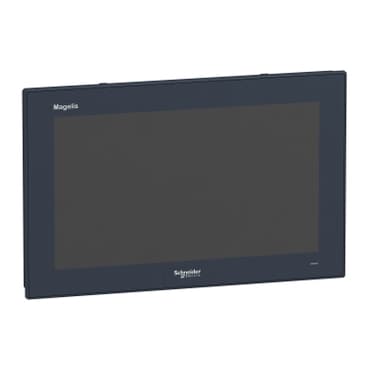

Product Model
HMIDM7521
Selling Points
- 1Features a 15.6-inch LED color TFT LCD display with 1366 x 768 pixels WHD FWXGA resolution.
- 2Equipped with multi-touch projected capacitive technology (PCT) for intuitive operation.
- 3Offers IP66 protection and NEMA 4X standards, ensuring durability in harsh environments.
- 4Operates in ambient air temperatures from 32°F to 131°F (0°C to 55°C) and up to 6561.68 ft (2000 m) altitude.
- 5Meets various international standards including IEC-Ex, Marine GL, Bridge CE, ATEX, C-Tick, and EAC certifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Flat screen |
Terminal type | Touchscreen display | Device mounting | Flush |
Product Compatibility | Modular Box PC | View angle horizontal x vertical | 150 x 140° |
Contrast Ratio | 500:1 | Pixel resolution | 1366 x 768 |
Touchscreen resolution | 4096 x 4096 | Display resolution | 1366 x 768 pixels WHD FWXGA |
Display size | 15.6 inch | Aspect ratio | 16:9 |
Display type | Colour TFT LCD<br />LED | Display colour | 16777216 colors |
Luminance | 27.9 fc (300 cd/m²) | Backlight lifespan | 50000 hours 77 °F (25 °C) |
Touch panel | Multi-touch projected capactive technology (PCT) | Function Available | Operate with water on screen |
[Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 18…36 V |
Inrush current | 8.9 A | Power consumption in W | 54.5 W Box PC HMIBMP)<br />49.5 W Box PC HMIBMU) |
Local signalling | Status LED | Depth | Enclosure : 1.1 in (28 mm)<br />0.3 in (7 mm) |
Height | 10.6 in (269 mm) | Width | 16.5 in (419.7 mm) |
Net Weight | 9.5 lb(US) (4.3 kg) | Standards | Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> UL 6110-2-201<br />Class I division 2 ANSI/ISA 12-12-01 |
Product certifications | IEC-Ex<br />C-tick<br />EAC<br />Marine GL Bridge<br />ATEX<br />CE | IP degree of protection | IP66 |
NEMA degree of protection | NEMA 4X | Pollution degree | 2 |
Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Relative Humidity | 10…95 % non-condensing |
Ambient air temperature for operation | 32…131 °F (0…55 °C) | Operating altitude | 6561.68 ft (2000 m) |
Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
