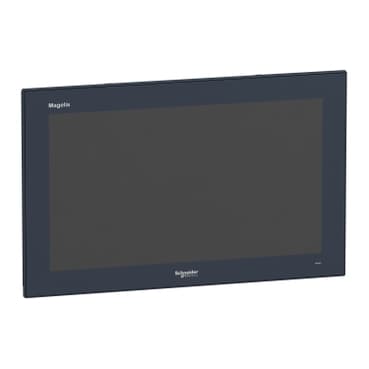

Product Model
HMIDM9521
Selling Points
- 1Features a 1366 x 768 pixel resolution with 16777216 colors, ensuring clear and vibrant visuals.
- 2Equipped with multi-touch projected capacitive technology (PCT) for precise and intuitive interaction.
- 3Operates with water on the screen, making it suitable for harsh environments.
- 4Compatible with 24 V DC and 100-240 V AC power supplies, with a supply voltage limit of 18-36 V DC.
- 5Meets IP66 and NEMA 4X standards, ensuring protection against dust and water, and withstands operating temperatures from 0 to 55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Flat screen |
Terminal type | Touchscreen display | Device mounting | Flush |
Product Compatibility | Modular Box PC | View angle horizontal x vertical | 150 x 140° |
Contrast Ratio | 500:1 | Pixel resolution | 1366 x 768 |
Touchscreen resolution | 4096 x 4096 | Display resolution | 1366 x 768 pixels WHD FWXGA |
Display size | 18.5 inch | Aspect ratio | 16:9 |
Display type | Colour TFT LCD<br />LED | Display colour | 16777216 colors |
Luminance | 27.9 fc (300 cd/m²) | Backlight lifespan | 50000 hours 77 °F (25 °C) |
Touch panel | Multi-touch projected capactive technology (PCT) | Function Available | Operate with water on screen |
[Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 18…36 V |
Inrush current | 8.9 A | Power consumption in W | 63.28 W Box PC HMIBMP)<br />58.28 W Box PC HMIBMU) |
Local signalling | Status LED | Depth | Enclosure : 1.1 in (28 mm)<br />0.3 in (7 mm) |
Height | 12.2 in (309 mm) | Width | 19.2 in (488.3 mm) |
Net Weight | 11.5 lb(US) (5.2 kg) | Standards | UL 60950<br /> CSA C22.2 No. 60950 |
Product certifications | EAC<br />C-tick<br />CCC | IP degree of protection | IP66 |
NEMA degree of protection | NEMA 4X | Pollution degree | 2 |
Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Relative Humidity | 10…95 % non-condensing |
Ambient air temperature for operation | 32…131 °F (0…55 °C) | Operating altitude | 6561.68 ft (2000 m) |
Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
