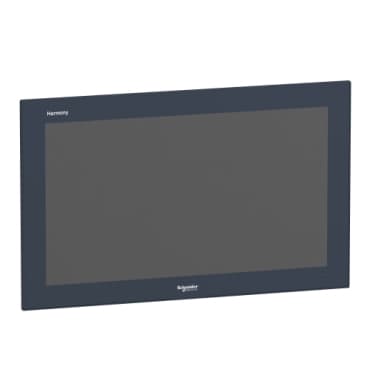

Product Model
HMIDMA521
Selling Points
- 1High-Resolution Display: Features a 22'' full HD (1920x1080 pixels) TFT LCD display.
- 2Multi-Touch Capability: Equipped with a 5-point projected capacitive multi-touch screen.
- 3Industrial-Grade Protection: Offers IP66/NEMA 4X protection against dust and water.
- 4Versatile Mounting Options: Designed for flush mounting, suitable for various industrial applications.
- 5Reliable Power Supply: Operates with a 24V DC power supply, ensuring stable performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Flat screen |
Terminal type | Touchscreen display | Device mounting | Flush |
Product Compatibility | Modular Box PC | View angle horizontal x vertical | 150 x 150° |
Contrast Ratio | 500:1 | Pixel resolution | 1024 x 1024 |
Touchscreen resolution | 4096 x 4096 | Display resolution | 1920 x 1080 pixels full HD |
Display size | 21.5 inch | Aspect ratio | 16:9 |
Display type | LED<br />Colour TFT LCD | Display colour | 16777216 colors |
Luminance | 27.9 fc (300 cd/m²) | Backlight lifespan | 50000 hours 77 °F (25 °C) |
Touch panel | Multi-touch projected capactive technology (PCT) | Function Available | Operate with water on screen |
[Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 18…36 V |
Inrush current | 8.9 A | Power consumption in W | 64.85 W Box PC HMIBMP)<br />59.85 W Box PC HMIBMU) |
Local signalling | Status LED | Depth | Enclosure : 1.1 in (28 mm)<br />0.3 in (7 mm) |
Height | 13.8 in (349.8 mm) | Width | 22.0 in (558.4 mm) |
Net Weight | 14.6 lb(US) (6.6 kg) | Standards | UL 60950<br /> CSA C22.2 No. 60950 |
Product certifications | CCC<br />C-tick<br />EAC | IP degree of protection | IP66 |
NEMA degree of protection | NEMA 4X | Pollution degree | 2 |
Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Relative Humidity | 10…95 % non-condensing |
Ambient air temperature for operation | 32…131 °F (0…55 °C) | Operating altitude | 6561.68 ft (2000 m) |
Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
