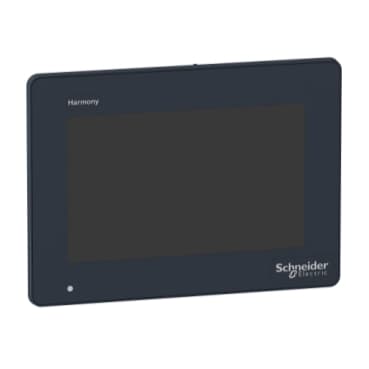

schneider HMIDT351

Selling Points

  • 1High-performance monitoring and communication with a smartphone-like interface.
  • 27-inch color TFT LCD display with 800 x 480 pixel WVGA resolution.
  • 3Compatible with 12 to 24 VDC power source, suitable for various industrial applications.
  • 4Resistant to permanent 60°C temperature, ideal for installations without ventilation.
  • 5Meets ANSI/ISA 12-12-01 Class I Division 2 and CSA C22.2 standards for hazardous locations.
Product Details
HMIDT351
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony GTU
Product or Component Type
Advanced touchscreen panel
Terminal type
Touchscreen display
[Us] rated supply voltage
12...24 V DC power supply
Supply voltage limits
10.8…28.8 V
Power Consumption in W
6.5 W
Inrush current
30 A
Touchscreen resolution
1024 x 1024
Pixel resolution
800 x 480
Display size
7 inch
Aspect ratio
4:3
Display type
Colour TFT LCD
Display Resolution
800 x 480 pixels WVGA
Display colour
262144 colors
Backlight lifespan
50000 hours
Touch panel
Single touch analogue resistive
Type of cooling
Natural convection
Type of Installation
Indoor installation
cut-out dimensions
190 (+ 1/- 0) x 135 (+ 1/- 0) mm
Width
8.02 in (203.6 mm)
Height
5.9 in (148.6 mm)
Depth
1.4 in (36 mm)
Net Weight
2.6 lb(US) (1.2 kg)
IP degree of protection
Front panel IP66<br />Front panel IP67
NEMA degree of protection
NEMA 4X front panel
Standards
UL 508<br /> ANSI/ISA 12-12-01<br />Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> IEC 61132-2
Product certifications
CULus<br />RCM<br />CE<br />KC<br />UKCA<br />UKEX
Ambient air temperature for operation
32…140 °F (0…60 °C) IEC 61131-2
Ambient air temperature for storage
-4…140 °F (-20…60 °C)
Relative Humidity
10…90 % non-condensing
Operating altitude
6561.68 ft (2000 m)
Vibration resistance
3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2
Shock resistance
147 m/s²IEC 61131-2
Electromagnetic compatibility
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Specifications may be subject to change without notice
