Product Model

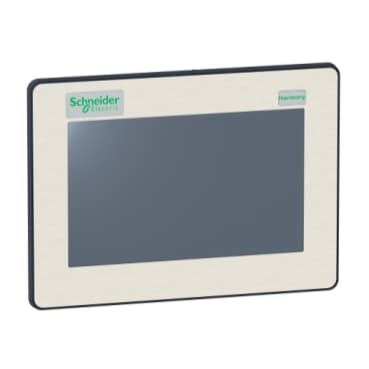

HMIDT35XFH
Selling Points
- 1Designed for direct sunlight exposure, ensuring clear visibility in outdoor applications.
- 2Built with a single touch analogue resistive touch panel for durability and reliability.
- 3Operates between -30°C to 65°C, suitable for various environmental conditions.
- 4Provides robust protection against water and dust, ideal for harsh industrial settings.
- 5Backlight lasts up to 50,000 hours, ensuring consistent performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTUX | Product or Component Type | EXtreme touchscreen panel |
Terminal type | Touchscreen display | [Us] rated supply voltage | 12 V DC power supply |
Supply voltage limits | 10.8…28.8 V | Power consumption in W | 12.5 W |
Inrush current | 30 A | Touchscreen resolution | 1024 x 1024 |
Pixel resolution | 800 x 480 | Display size | 7 inch |
Aspect ratio | 4:3 | Display type | Colour TFT LCD |
Display Resolution | 800 x 480 pixels WVGA | Display colour | 262144 colors |
Luminance | 92.9 fc (1000 cd/m²) | Touch panel | Single touch analogue resistive |
Type of cooling | Natural convection | cut-out dimensions | 394 (+ 1/- 0) x 250 (+ 1/- 0) mm |
Width | 8.02 in (203.6 mm) | Height | 5.9 in (148.6 mm) |
Depth | 1.5 in (37 mm) | Net Weight | 2.9 lb(US) (1.3 kg) |
IP degree of protection | IP66f<br /> IP67f<br />Front panel Type 4X | Standards | UL 61010<br /> UL 121201<br /> CSA C22.2 No 213<br /> CSA C22.2 No 61010-1<br /> IEC 61132-2 |
Product Certifications | KC<br />CE<br />RCM<br />EAC<br />ATEX zone 2/22<br />IEC-Ex<br />UL<br />CSA<br />UKCA<br />UKEX | Ambient air temperature for operation | -22…149 °F (-30…65 °C) IEC 61131-2 |
Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Pollution degree | 2 |
Environmental characteristic | 3C3<br />UV resistant | Relative Humidity | 10…90 % non-condensing |
Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 7 mm constant amplitude 5…9 Hz) IEC 61131-2<br />19.6 m/s² 9…150 Hz) IEC 61131-2 |
Shock resistance | 392 m/s²IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
