Product Model

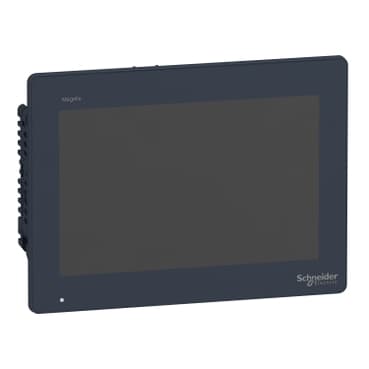

HMIDT551FC
Selling Points
- 1Advanced Touchscreen Panel: Features a 10.1-inch WXGA display with 1280 x 800 resolution and 262144 colors.
- 2Robust Communication: Equipped with dual serial ports, up to 4 USB host ports, and 2 Gigabit Ethernet ports for enhanced connectivity.
- 3Energy Efficiency: Operates at 6.5W power consumption, making it a cost-effective solution for industrial applications.
- 4Durable Design: Built with a resistive touch film and designed for indoor installation with IP66 protection against dust and water.
- 5Versatile Connectivity: Supports RS-232, RS-422/RS-485 serial communication and USB 2.0 host port for external peripherals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTU | Product or Component Type | Advanced touchscreen panel |
Terminal type | Touchscreen display | [Us] rated supply voltage | 12...24 V DC power supply |
Supply voltage limits | 10.8…28.8 V | Power Consumption in W | 6.5 W |
Inrush current | 30 A | Touchscreen resolution | 1024 x 1024 |
Pixel resolution | 1280 x 800 | Display size | 10.1 inch |
Aspect ratio | 4:3 | Display type | Colour TFT LCD |
Display Resolution | 1280 x 800 pixels WVGA | Display colour | 262144 colors |
Backlight lifespan | 50000 hours | Touch panel | Single touch analogue resistive |
Provided equipment | 1 flash card | Type of cooling | Natural convection |
Type of Installation | Indoor installation | cut-out dimensions | 190 (+ 1/- 0) x 135 (+ 1/- 0) mm |
Width | 10.6 in (268.5 mm) | Height | 7.8 in (198.5 mm) |
Depth | 2.6 in (67 mm) | Net Weight | 5.5 lb(US) (2.5 kg) |
IP degree of protection | Front panel IP66 | NEMA degree of protection | NEMA 4X front panel |
Standards | UL 508 | Product certifications | CE<br />UKCA<br />UKEX |
Ambient air temperature for operation | 32…140 °F (0…60 °C) EN 61131-2 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
Relative Humidity | 10…90 % non-condensing | Operating altitude | 6561.68 ft (2000 m) |
Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) EN/IEC 61131-2 | Shock resistance | 147 m/s²EN/IEC 61131-2 |
Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
Specifications may be subject to change without notice
