Product Model

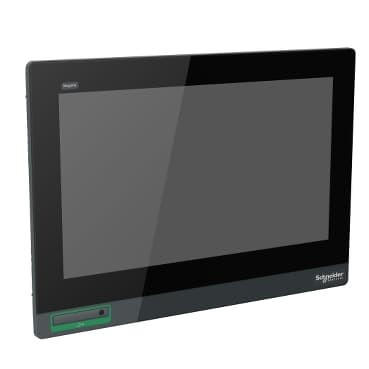

HMIDT752
Selling Points
- 1Features a 15.6 inch FWXGA display with 1366 x 768 pixels resolution.
- 2Operates on 12 VDC-24 VDC with a max power consumption of 17 Watts.
- 3Resistant to water and dust, ensuring durability in harsh environments.
- 4Designed for flush mounting, providing a sleek and compact installation.
- 5Equipped with state-of-the-art wireless security protocols including WEB/WPA/WPA2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTU | Product or Component Type | Flat screen |
Terminal type | Touchscreen display | [Us] rated supply voltage | 12...24 V DC power supply |
Supply voltage limits | 10.8…28.8 V | Power Consumption in W | 17 W |
Inrush current | 30 A | Integrated connection type | USB 2.0 type A<br />USB 2.0 type mini B |
Touchscreen resolution | 2048 x 2048 | Pixel resolution | 1366 x 768 |
Display size | 15.6 inch | Aspect ratio | 4:3 |
Display type | Colour TFT LCD | Display Resolution | 1366 x 768 pixels FWXGA |
Display colour | 16 million colours | Backlight lifespan | 50000 hours |
Touch panel | Multi-touch projected capactive technology (PCT) 50000000 cycles | Function Available | Brightness sensor |
Type of cooling | Natural convection | Type of Installation | Indoor installation |
cut-out dimensions | 396 (+ 1/- 0) x 277 (+ 1/- 0) mm | Width | 16.3 in (414 mm) |
Height | 11.6 in (295 mm) | Depth | 2.7 in (69 mm) |
Net Weight | 11.02 lb(US) (5 kg) | IP degree of protection | Front panel IP66<br />Front panel IP67 |
NEMA degree of protection | NEMA 4X front panel | Standards | UL 508<br /> ANSI/ISA 12-12-01<br />Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> IEC 61132-2 |
Product certifications | KC<br />CE<br />RCM<br />CULus<br />UKCA<br />UKEX | Ambient air temperature for operation | 32…131 °F (0…55 °C) IEC 61131-2 |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…90 % non-condensing |
Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 |
Shock resistance | 147 m/s²IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
