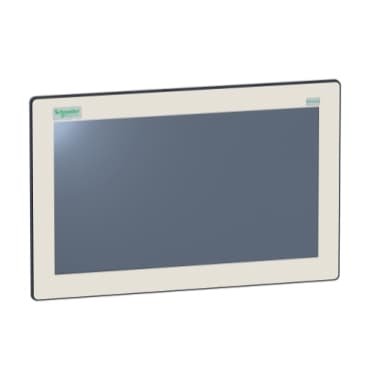

Product Model
HMIDT75X
Selling Points
- 1High brightness liquid crystal panel for clear visibility in various conditions.
- 2Anti-reflection (anti-glare) and UV protection for durability.
- 3Dust and water-proof design for harsh environments.
- 4Wide temperature range (-20°C to 60°C) for versatile operation.
- 5Strong against shocks and vibrations, ensuring reliability in demanding settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTUX | Product or Component Type | EXtreme touchscreen panel |
Terminal type | Touchscreen display | [Us] rated supply voltage | 12 V DC power supply |
Supply voltage limits | 10.8…28.8 V | Power consumption in W | 12.5 W |
Inrush current | 30 A | Touchscreen resolution | 1024 x 1024 |
Pixel resolution | 1366 x 768 | Display size | 15.6 inch |
Aspect ratio | 4:3 | Display type | Colour TFT LCD |
Display Resolution | 1366 x 768 pixels FWXGA | Display colour | 262144 colors |
Luminance | 92.9 fc (1000 cd/m²) | Touch panel | Single touch analogue resistive |
Type of cooling | Natural convection | cut-out dimensions | 394 (+ 1/- 0) x 250 (+ 1/- 0) mm |
Width | 16.06 in (408 mm) | Height | 10.4 in (264 mm) |
Depth | 2.7 in (68 mm) | Net Weight | 10.6 lb(US) (4.8 kg) |
IP degree of protection | IP66f<br /> IP67f<br />Front panel Type 4X | Standards | UL 61010<br /> UL 121201<br /> CSA C22.2 No 213<br /> CSA C22.2 No 61010-1<br /> IEC 61132-2 |
Product Certifications | KC<br />CE<br />RCM<br />EAC<br />ATEX zone 2/22<br />IEC-Ex<br />UL<br />CSA<br />UKCA<br />UKEX | Ambient air temperature for operation | -4…140 °F (-20…60 °C) IEC 61131-2 |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Pollution degree | 2 |
Environmental characteristic | Corrosive gas free<br />UV resistant | Relative Humidity | 10…90 % non-condensing |
Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 7 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 |
Shock resistance | 392 m/s²IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
