schneiderHMI (Terminals and Industrial PC)
Product Model

HMIFP6900WCD

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

29943

In Stock
Last updated: 2025/4/17
View Specifications

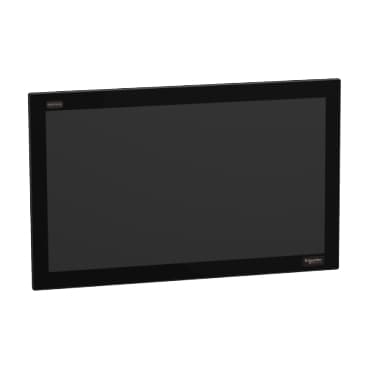

schneider HMIFP6900WCD

Selling Points

  • 1High-Resolution Display: Features a 21.5-inch Full HD (1920 x 1080) display with 16 million colors.
  • 2Multi-Touch Capability: Equipped with a 2-point projected capacitive (PCAP) multi-touch panel.
  • 3Optimized Noise Filter: Includes an optimized noise filter for improved performance in noisy environments.
  • 4Durable Design: Designed with a glass-top surface and a backlight service life of 50,000 hours.
  • 5Versatile Mounting Options: Compatible with front enclosure or VESA 100 x 100 mount on the rear of a Box PC.
Product Details
HMIFP6900WCD
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony FP6
Product or Component Type
Touch panel screen
Operating system
Windows 10 version 1809)
Display size
21.5 inch
Aspect ratio
16:9
Display Type
LED<br />Colour TFT LCD
Display Resolution
1920 x 1080 pixels full HD
Display colour
16 million colours
Touch panel
Multi-touch projected capactive technology (PCT)
Pixel resolution
1920 x 1080
Backlight lifespan
50000 hours at 77 °F (25 °C)
Integrated connection type
DVI-D video port<br /> USB type B USB 2.0
[Us] rated supply voltage
24 V DC
Power consumption in W
31.8 W
Inrush current
30 A
Type of cooling
Natural
Device mounting
Panel mounting<br />Direct mounting VESA
cut-out dimensions
518.5 (+ 1/- 0) x 316.5 (+ 1/- 0) mm
Width
21.0 in (532.6 mm)
Depth
2.7 in (69.5 mm)
Height
13.02 in (330.6 mm)
Net Weight
17.6 lb(US) (8.0 kg)
Standards
CE<br />FCC part 15<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201
Product certifications
RCM<br />KC<br />UKCA<br />DNV (except 22" wide display)<br />ATEX zone 2<br />ATEX zone 22 dust<br />CULus Class 1 Division 2<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw)
IP degree of protection
IP66f<br />IP67f<br />Type 1<br />Type 4X<br />Type 12<br />Type 13
Ambient air temperature for operation
32…131 °F (0…55 °C)
Ambient air temperature for storage
-4…140 °F (-20…60 °C)
Pollution degree
2
Operating altitude
6561.68 ft (2000 m)
Vibration resistance
1 gn 5…9 Hz) - single amplitude - IEC 61131-2<br />1 gn 9…150 Hz) - fixed amplitude - IEC 61131-2<br />1 gn - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Shock resistance
147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z
Electromagnetic compatibility
Electrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test 8 kV air discharge IEC 61000-4-2 level 3<br />Electrical fast transient/burst immunity test 2 kV power ports IEC 61000-4-4<br />Electrical fast transient/burst immunity test 1 kV signal ports IEC 61000-4-4

Specifications may be subject to change without notice
