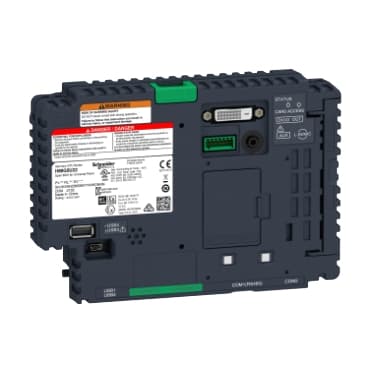

Product Model
HMIG5U22
Selling Points
- 1Modular Design for Unparalleled Flexibility
- 2Robust Design to Withstand Harsh Environments
- 3Powerful Configuration Software for Easy Use
- 4Enhanced HMI Functionality with USB Accessories
- 5Remote Access via Ethernet or WiFi for Seamless Operation
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTU | Product or Component Type | Base unit |
Device short name | Open Box | Range Compatibility | Harmony GTU |
[Us] rated supply voltage | 12...24 V DC power supply | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />COM1 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 2400...115200 bps<br />Auxiliary port terminal block<br />USB 2.0 port mini B USB<br />DVI-D video port DVI-D<br />Microphone mini-jack<br />USB 2.0 port 3 USB type A |
Communication port protocol | Modbus<br />Modbus TCP/IP<br />Uni-Telway | Operating system | Windows 10 IoT Enterprise 32bit |
Software package | Vijeo Designer run time<br />EcoStruxure Operator Terminal Expert run time<br />Internet Explorer<br />.NET framework 4.0<br />Multimedia player | Processor name | Intel X86 1.33 GHz |
Data storage equipment | 32 GB CFast card | Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
Memory description | 512 KB NVRAM backup memory<br />4 GB RAM internal | Number of slots | 1 slot(s) for SD card<br />2 slot(s) for Cfast card |
Realtime clock | Built-in | Local signalling | , multi-colour LEDstatus |
Type of cooling | Natural convection | Width | 7.4 in (188 mm) |
Height | 5.2 in (131 mm) | Depth | 1.8 in (45 mm) |
Net Weight | 2.0 lb(US) (0.9 kg) | Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 508<br />Class I division 2 CSA C22.2 No 213<br /> IEC 61132-2 |
Product certifications | CE<br />CULus<br />ATEX<br />IEC-Ex<br />RCM<br />DNV-GL<br />KC<br />CUL<br />EAC<br />UKCA<br />UKEX | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Pollution degree | 2 IEC 61131-2 ed.3 |
Relative Humidity | 10…90 % non-condensing | Operating altitude | 2000 |
Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 | Shock resistance | 147 m/s²IEC 61131-2 |
Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
