Product Model

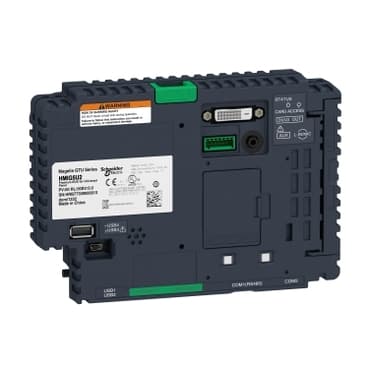

HMIG5UL8A
Selling Points
- 1Modular Design: Select and assemble the optimum combination of display units and interfaces to meet specific needs.
- 2Advanced Connectivity: Supports Ethernet, TCP/IP, RS485, RS232C, and USB 2.0 for seamless integration.
- 3High-Performance Display: Available in various sizes (7" to 19") with high-resolution TFT displays and multi-touch support.
- 4Robust Operating Environment: Operates in temperatures from 0 to 60°C with IP67 front face protection.
- 5Comprehensive Software Package: Includes Windows Embedded 7, EcoStruxure Machine SCADA Expert, and .NET framework 4.0 for enhanced functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTU | Product or Component Type | Base unit |
Device short name | Open Box | Range Compatibility | Harmony GTU |
[Us] rated supply voltage | 12...24 V DC power supply | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />COM1 serial link RJ45 RS485 110...115200 bit/s<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s<br />Auxiliary port terminal block<br />Expansion unit fieldbus card<br />USB 2.0 port mini B USB<br />DVI-D video port DVI-D<br />Microphone mini-jack<br />USB 2.0 port 3 USB type A |
Communication port protocol | Modbus<br />Modbus TCP/IP<br />Uni-Telway | Operating system | Windows Embedded 7 |
Software package | Internet Explorer<br />EcoStruxure machine SCADA expert trial version<br />.NET framework 4.0<br />Adobe PDF reader<br />Multimedia player<br />Office reader<br />VNC client/server | Processor name | Intel X86 1.33 GHz |
Data storage equipment | 32 GB CFast card | Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
Memory description | 512 KB NVRAM backup memory<br />2 GB RAM internal | Type of cooling | Natural convection |
Width | 7.4 in (188 mm) | Height | 5.2 in (131 mm) |
Depth | 1.8 in (45 mm) | Net Weight | 2.0 lb(US) (0.9 kg) |
Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 508<br />Class I division 2 CSA C22.2 No 213<br /> IEC 61132-2 | Product certifications | CE<br />CULus<br />ATEX<br />IEC-Ex<br />RCM<br />GL<br />KC<br />CUL<br />EAC<br />ABS<br />BV<br />CCS<br />DNV<br />LR<br />RINA |
Ambient air temperature for operation | 32…140 °F (0…60 °C) | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
Pollution degree | 2 IEC 61131-2 ed.3 | Relative Humidity | 10…90 % non-condensing |
Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 |
Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
