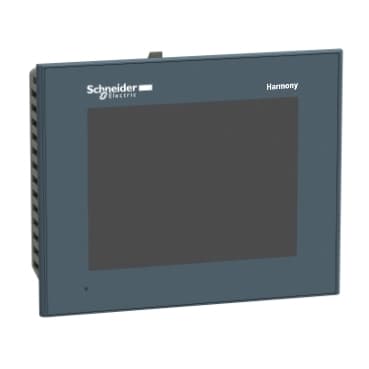

Product Model
HMIGTO2300FC
Selling Points
- 1High-Resolution Touch Screens: Equipped with a 7.0” WVGA (800 x 480 pixels) TFT LCD screen for clear and intuitive operation.
- 2Robust Communication Protocols: Supports Uni-TE, Modbus, and Modbus TCP/IP protocols for seamless integration with PLCs.
- 3Reliable Power Supply: Rated input voltage of 24 Vdc with input voltage limits of 19.2...28.8 Vdc and a voltage drop of 5 ms or less.
- 4Memory Expansion: Expandable memory capacity via 4 GB SD card for storing recipes and variables.
- 5Durable Design: IP 65 degree of protection with an optional stainless steel frame for food & beverage environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTO | Product or Component Type | Advanced touchscreen panel |
Display colour | 65536 colours | Display size | 5.7 inch |
Supply | External source | Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) |
Terminal type | Touchscreen display | Display Type | Backlit colour TFT LCD |
Display Resolution | 320 x 240 pixels QVGA | Touch sensitive zone | 1024 x 1024 |
Touch panel | Resistive film, 1000000 cycles | Backlight lifespan | 50000 hours white 77 °F (25 °C) |
Brightness | 16 levels by touch panel<br />16 levels by software | Character font | Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />ASCII (European characters)<br />Taiwanese (traditional Chinese)<br />Korean |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…28.8 V |
Inrush current | 30 A | Maximum power consumption in W | 6.5 W when power is not supplied to external devices<br />4.5 W when backlight is OFF<br />5 W when backlight is dimmed<br />10.5 W |
Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED clear, faded power supply (OFF)<br />COM2 LED yellow, steady data is being transmitted<br />COM2 LED yellow, faded no data transmission<br />SD card LED green, steady card is inserted<br />SD card LED green, faded card is not inserted or is not being accessed | Software designation | Vijeo Designer configuration software >= V6.1 |
Memory description | Flash EPROM, 64 MB | Data backed up | 128 kB internal RAM SRAM) |
Downloadable protocols | Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Uni-TE<br />Schneider Electric Modicon Modbus Plus<br />Schneider Electric Modicon FIPWAY<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols | Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps<br />COM2 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI<br />USB 2.0 type A<br />USB 2.0 type mini B |
Product mounting | Flush mounting | Fixing mode | by 4 screw clamps |
Front material | PPT | Enclosure Material | PPT |
Type of cooling | Natural convection | Width | 6.7 in (169.5 mm) |
Height | 5.4 in (137 mm) | Depth | 2.3 in (59.5 mm) |
Net Weight | 1.8 lb(US) (0.8 kg) | Standards | IEC 61000-6-2<br />UL 508<br />EN 61131-2 |
Product Certifications | KCC<br />CE<br />cULus<br />C-tick<br />UKCA<br />UKEX | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % without condensation |
Operating altitude | < 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
NEMA degree of protection | NEMA 4X front panel (indoor use) | Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
Vibration resistance | 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2<br />1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 | Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
