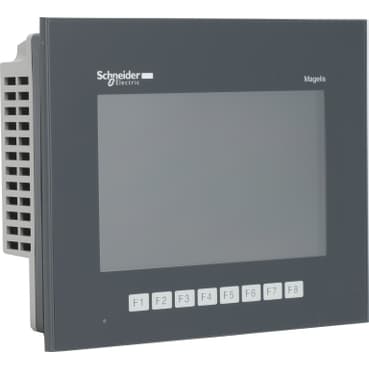

Product Model
HMIGTO3510
Selling Points
- 1High-resolution 7-inch WVGA (800 x 480 pixels) display for clear visuals.
- 2Optimized for demanding industrial applications with robust connectivity options.
- 3Equipped with 2 COM2, 2 Ethernet (RJ45), 2 USB 2.0, and 1 COM1 ports for versatile communication.
- 4Backlit color TFT LCD display for enhanced readability in various lighting conditions.
- 5Compatible with Vijeo Designer software for easy configuration and remote access via Ethernet.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTO | Product or Component Type | Advanced touchscreen panel |
Display colour | 65536 colours | Display size | 7 inch |
Supply | External source | Control Button Type | 8 operation defined using Vijeo Designer push-button key F1...F8 |
Operating System | Harmony | Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) |
Terminal type | Touchscreen display | Display Type | Backlit colour TFT LCD |
Display Resolution | 800 x 480 pixels WVGA | Touch sensitive zone | 1024 x 1024 |
Touch panel | Resistive film, 1000000 cycles | Backlight lifespan | 50000 hours white 77 °F (25 °C) |
Brightness | 16 levels by touch panel<br />16 levels by software | Character font | Taiwanese (traditional Chinese)<br />ASCII<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Korean |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…28.8 V |
Inrush current | 30 A | Maximum power consumption in W | 8 W when power is not supplied to external devices<br />5 W when backlight is OFF<br />5.5 W when backlight is dimmed<br />12 W |
Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED clear, faded power supply (OFF)<br />COM2 LED yellow, steady data is being transmitted<br />COM2 LED yellow, faded no data transmission<br />SD card LED green, steady card is inserted<br />SD card LED green, faded card is not inserted or is not being accessed | Software designation | Vijeo Designer configuration software >= V6.1 |
Memory description | Flash EPROM, 96 MB | Data backed up | 128 kB internal RAM SRAM) |
Data storage equipment | SD card, <= 32 GB<br />SDHC card, <= 32 GB | Downloadable protocols | Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Uni-TE<br />Schneider Electric Modicon Modbus Plus<br />Schneider Electric Modicon FIPWAY<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Schneider Electric Modicon Modbus TCP |
Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps<br />COM2 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI<br />Ethernet RJ45 10BASE-T/100BASE-TX<br />Ethernet RJ45 IEEE 802.3<br />USB 2.0 type A<br />USB 2.0 type mini B | Product mounting | Flush mounting |
Fixing mode | by 4 screw clamps | Front material | PPT |
Enclosure Material | PPT | Type of cooling | Natural convection |
Width | 8.6 in (218 mm) | Height | 6.8 in (173 mm) |
Depth | 2.4 in (60 mm) | Net Weight | 2.6 lb(US) (1.2 kg) |
Standards | UL 508<br />IEC 61000-6-2<br />IEC 61131-2 | Product Certifications | CE<br />C-tick<br />KCC<br />cULus<br />UKCA<br />UKEX |
Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
Relative humidity | 10…90 % without condensation | Operating altitude | < 6561.68 ft (2000 m) |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel (indoor use) |
Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2 | Vibration resistance | 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2<br />1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 |
Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
