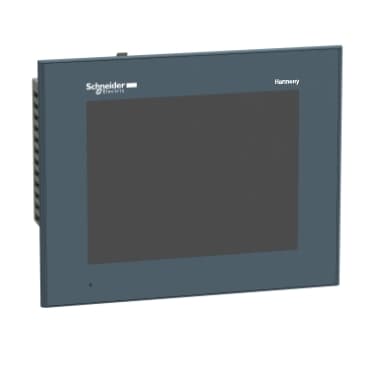

Schneider Electric HMIGTO4310FC Advanced Touchscreen Panel

Selling Points

1High-resolution 7.5-inch VGA TFT display for clear visuals.
2Touchscreen interface with 640 x 480 pixels for precise interaction.
3UL 508 certified for safe and reliable operation in industrial environments.
4Multifunctional design suitable for a wide range of electronic projects.
5Conformal coating for enhanced durability and resistance to environmental factors.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony GTO	Product or Component Type	Advanced touchscreen panel
Display colour	65536 colours	Display size	7.5 inch
Supply	External source	Battery type	Lithium internal RAM 100 days 5 day(s) 10 year(s)
Terminal type	Touchscreen display	Display Type	Backlit colour TFT LCD
Display Resolution	640 x 480 pixels VGA	Touch sensitive zone	1024 x 1024
Touch panel	Resistive film, 1000000 cycles	Backlight lifespan	50000 hours white 77 °F (25 °C)
Brightness	16 levels by touch panel<br />16 levels by software	Character font	ASCII<br />Japanese (ANK, Kanji)<br />Taiwanese (traditional Chinese)<br />Korean<br />Chinese (simplified Chinese)
[Us] rated supply voltage	24 V DC	Supply voltage limits	19.2…28.8 V
Inrush current	30 A	Maximum power consumption in W	8 W when power is not supplied to external devices<br />5 W when backlight is OFF<br />5.5 W when backlight is dimmed<br />12 W
Local signalling	Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED clear, faded power supply (OFF)<br />COM2 LED yellow, steady data is being transmitted<br />COM2 LED yellow, faded no data transmission<br />SD card LED green, steady card is inserted<br />SD card LED green, faded card is not inserted or is not being accessed	Software designation	Vijeo Designer configuration software >= V6.1
Memory description	Flash EPROM, 96 MB	Data backed up	512 KB internal RAM SRAM)
Data storage equipment	SD card, <= 32 GB<br />SDHC card, <= 32 GB	Downloadable protocols	Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Uni-TE<br />Schneider Electric Modicon Modbus Plus<br />Schneider Electric Modicon FIPWAY<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Schneider Electric Modicon Modbus TCP
Integrated connection type	COM1 serial link SUB-D 9 RS232C 2400...115200 bps<br />COM2 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI<br />Ethernet RJ45 10BASE-T/100BASE-TX<br />Ethernet RJ45 IEEE 802.3<br />USB 2.0 type A<br />USB 2.0 type mini B	Product mounting	Flush mounting
Fixing mode	by 4 screw clamps	Front material	PPT
Enclosure Material	PPT	Type of cooling	Natural convection
Width	8.6 in (218 mm)	Height	6.8 in (173 mm)
Depth	2.4 in (60 mm)	Net Weight	2.6 lb(US) (1.2 kg)
Standards	IEC 61131-2<br />IEC 61000-6-2<br />UL 508	Product Certifications	C-tick<br />cULus<br />CE<br />KCC<br />UKCA<br />UKEX
Ambient Air Temperature for Operation	32…131 °F (0…55 °C)	Ambient air temperature for storage	-4…140 °F (-20…60 °C)
Relative humidity	10…90 % without condensation	Operating altitude	< 6561.68 ft (2000 m)
IP degree of protection	IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)	NEMA degree of protection	NEMA 4X front panel (indoor use)
Shock resistance	147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2	Vibration resistance	3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2<br />1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Resistance to electrostatic discharge	6 kV contact discharge IEC 61000-4-2 level 3

Specifications may be subject to change without notice
