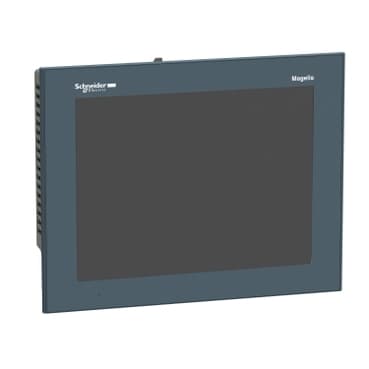

Product Model
HMIGTO5310FC
Selling Points
- 1Advanced 10.4-inch backlit color TFT LCD touchscreen display.
- 2Flush mounting design for seamless integration.
- 3UL 508 certified for industrial use.
- 424VDC power supply with 17 watts max consumption.
- 5Compatible with Vijeo Designer configuration software.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTO | Product or Component Type | Advanced touchscreen panel |
Display colour | 65536 colours | Display size | 10.4 inch |
Supply | External source | Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) |
Terminal type | Touchscreen display | Display Type | Backlit colour TFT LCD |
Display Resolution | 640 x 480 pixels VGA | Touch sensitive zone | 1024 x 1024 |
Touch panel | Resistive film, 1000000 cycles | Backlight lifespan | 50000 hours white 77 °F (25 °C) |
Brightness | 16 levels by touch panel<br />16 levels by software | Character font | Taiwanese (traditional Chinese)<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />ASCII<br />Korean |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…28.8 V |
Inrush current | 30 A | Maximum power consumption in W | 12 W when power is not supplied to external devices<br />7 W when backlight is OFF<br />8 W when backlight is dimmed<br />17 W |
Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED clear, faded power supply (OFF)<br />COM2 LED yellow, steady data is being transmitted<br />COM2 LED yellow, faded no data transmission<br />SD card LED green, steady card is inserted<br />SD card LED green, faded card is not inserted or is not being accessed | Software designation | Vijeo Designer configuration software >= V6.1 |
Memory description | Flash EPROM, 96 MB | Data backed up | 512 KB internal RAM SRAM) |
Data storage equipment | SD card, <= 32 GB<br />SDHC card, <= 32 GB | Downloadable protocols | Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Uni-TE<br />Schneider Electric Modicon Modbus Plus<br />Schneider Electric Modicon FIPWAY<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Schneider Electric Modicon Modbus TCP |
Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps<br />COM2 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI<br />Ethernet RJ45 10BASE-T/100BASE-TX<br />Ethernet RJ45 IEEE 802.3<br />USB 2.0 type A<br />USB 2.0 type mini B | Product mounting | Flush mounting |
Fixing mode | by 4 screw clamps | Front material | PPT |
Enclosure Material | PPT | Type of cooling | Natural convection |
Width | 10.7 in (272.5 mm) | Height | 8.4 in (214.5 mm) |
Depth | 2.2 in (57 mm) | Net Weight | 4.4 lb(US) (2 kg) |
Standards | IEC 61000-6-2<br />UL 508<br />IEC 61131-2 | Product Certifications | C-tick<br />CE<br />cULus<br />KCC<br />UKCA<br />UKEX |
Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
Relative humidity | 10…90 % without condensation | Operating altitude | < 6561.68 ft (2000 m) |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel (indoor use) |
Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2 | Vibration resistance | 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2<br />1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 |
Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
