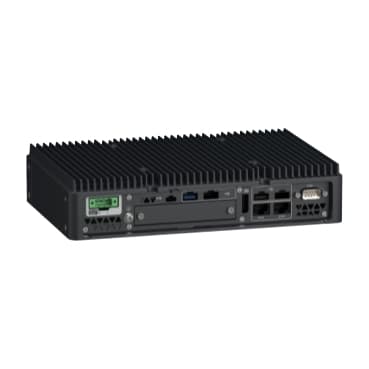

Product Model
HMIP63BCTO
Selling Points
- 1Advanced Performance: Equipped with Intel Core i3-8145UE processor and up to 32GB DDR4 RAM for efficient processing.
- 2Modular Design: Offers flexible expansion options with 1x M.2 SSD, 1x 2.5 inch SATA slot, and integrated TPM 2.0 module.
- 3Enhanced Security: Features Secure Password Boot, EcoStruxure Secure Connect Advisor, and McAfee allowlist for robust cybersecurity.
- 4Comprehensive Connectivity: Includes Type A (2x USB 2.0 + 2x USB 3.0) and Type C (1x USB 3.0) USB ports, 1x COM RS-232C serial port, 2x RJ45 Ethernet, and 1x Display port.
- 5Durable and Reliable: Meets CE, RCM, UL 61010-2-201, and CSA C22.2 No. 61010-2-201 standards with IP20 protection and operating altitude up to 2000 meters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony P6 | Product or Component Type | Modular box PC |
Device short name | HMIP63 | Operating system | Windows 10 IoT Enterprise 64 bitmulti-language |
Video controller type | Intel UHD Graphics 620 | Range compatibility | FP5000<br />PS6000<br />FP6000 |
Number of slots | 1 slot(s) for optional interfaceslot-IN | Inrush current | 30 A |
Type of cooling | Fanless | Width | 9.8 in (250 mm) |
Height | 6.5 in (165 mm) | Net Weight | 5.5 lb(US) (2.5 kg) |
Product certifications | CE<br />CULus<br />CSA<br />UL 61010-2-201<br />RCM<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust<br />ATEX zone 2<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | NEMA degree of protection | NEMA 4X/13 |
Ambient air temperature for operation | 32…131 °F (0…55 °C) wall mounting without HDD) side EN/IEC 60068-2-2<br />32…131 °F (0…55 °C) book mounting without HDD) side<br />32…122 °F (0…50 °C) flat mounting without HDD) top<br />32…122 °F (0…50 °C) book mounting without HDD) top<br />32…104 °F (0…40 °C) wall mounting with HDD) side<br />32…104 °F (0…40 °C) book mounting with HDD) side<br />32…104 °F (0…40 °C) flat mounting with HDD) top<br />32…104 °F (0…40 °C) book mounting with HDD) top<br />32…131 °F (0…55 °C) panel without HDD) landscape<br />32…122 °F (0…50 °C) panel without HDD) portrait<br />32…104 °F (0…40 °C) panel with HDD) landscape<br />32…104 °F (0…40 °C) panel with HDD) portrait | Pollution degree | 2 |
Operating altitude | 6561.68 ft (2000 m) | Shock resistance | 147 m/s² X, Y, Z directions for 3 times IEC 61131-2 |
Specifications may be subject to change without notice
